| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

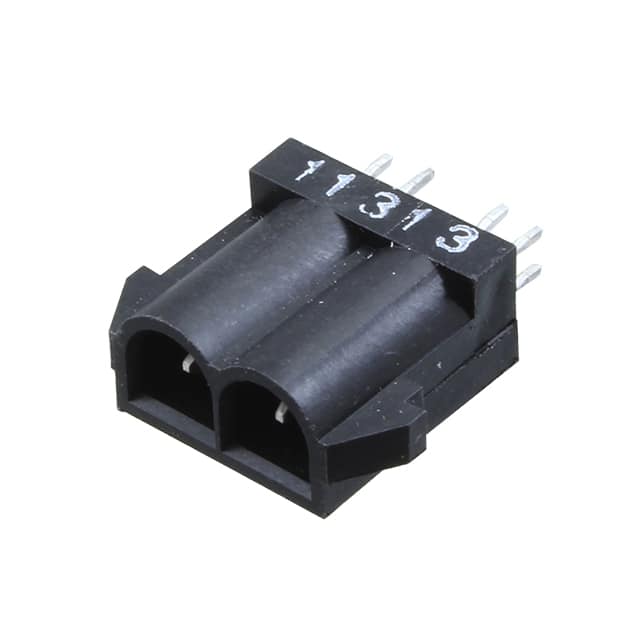

The TE Connectivity 173924-1 is a 2-position, single-row male pin header connector designed for board-to-board or cable applications. It features a 6.35mm pitch and a shrouded 4-wall design with a locking ramp for secure mating. The header is through-hole mounted and supports both press-fit and solder termination methods.
Constructed with a copper alloy contact material finished in tin, the connector offers a contact thickness of 2.00µm. The overall contact length is 19.40mm with a mating contact length of 4.80mm. The black thermoplastic, glass-filled insulation housing has a height of 15.85mm and meets UL94 V-0 flammability rating. It operates over a temperature range of -25°C to 85°C.
Electrically, this header is rated for 15A of current and 500VAC, making it suitable for power and signal interconnections in various industrial and commercial equipment. The locking ramp fastening type provides reliable retention against vibration.
It has 2 positions in a single row.
The pitch is 6.35mm (0.250 inches).
It is rated for 15A.
It is rated for 500VAC.
Through-hole mounting with press-fit or solder termination.
-25°C to 85°C.
UL94 V-0.
