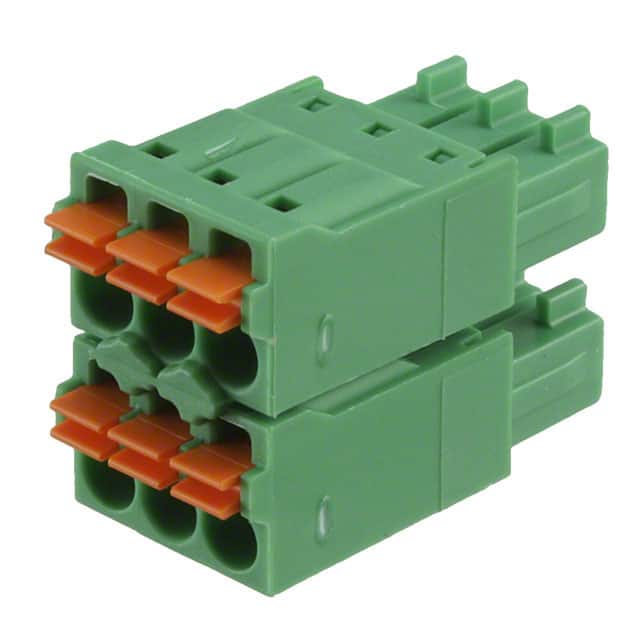

1738814 Phoenix Contact FMCD 1,5 series PCB plug with 6 positions (2 levels of 3), 3.5 mm pitch, and push-in spring connection. Rated 8 A at 160 V.
Mfr Part #:

1738814

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact FMCD 1,5 series PCB plug with 6 positions (2 levels of 3), 3.5 mm pitch, and push-in spring connection. Rated 8 A at 160 V.
✓ Total Stock: 75 pcs

1738814 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1738814 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Storage Temperature
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1738814 Description

Short technical summary and product information.

This Phoenix Contact terminal block plug, part number 1738814, belongs to the FMCD 1,5 series and features 6 positions arranged in 2 levels of 3 positions each. It uses a screwless push-in spring termination for fast conductor connection and accepts solid or stranded wires from 0.2 to 1.5 mm² (24 to 16 AWG).



The plug is rated for 8 A nominal current with a rated voltage of 160 V (III/2) and a rated surge voltage of 2.5 kV. The insulating material is polyamide with a flammability rating of UL 94 V0. Contact mating finish is tin.



The component is designed for free hanging (in-line) mounting with a 180 degree plug wire entry. The green housing provides clear visual identification. Stripping length is 10 mm.

1738814 Quick Information

Product Type: Terminal Block Plug
Series: ST
Canonical Name: Phoenix Contact FMCD 1,5/6-ST-3,5 - Printed-circuit board plug, 6 positions, 3.5 mm pitch, push-in spring connection
Subcategory: Headers, Plugs and Sockets

1738814 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1738814 Features

  • 6 positions in 2 levels, 3.5 mm pitch.
  • Screwless push-in spring termination.
  • Rated 8 A at 160 V (III/2).
  • UL 94 V0 flammability rated PA housing.
  • Accepts 16-24 AWG solid or stranded wire.

1738814 Applications

  • Ideal for compact PCB connection in terminal blocks.
  • Suitable for industrial control and automation wiring.
  • Used in free-hanging in-line connector applications.
  • Push-in spring connection reduces installation time.

1738814 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1738814 have?

The plug has 6 positions arranged in 2 levels with 3 positions per level.

What is the pitch of this terminal block plug?

The pitch is 3.5 mm.

What is the current and voltage rating?

Nominal current is 8 A. Rated voltage is 160 V (III/2) per EN-VDE and 150 V per UL (Use Group B and D).

What type of wire termination does this plug use?

It uses a screwless push-in spring connection (spring-cage connection).

What wire sizes are compatible?

It accepts solid or stranded conductors from 0.2 to 1.5 mm² (16 to 24 AWG).

What is the insulation material and flammability rating?

The insulating material is polyamide (PA) with a flammability class of UL 94 V0.

Is the plug free hanging or panel mount?

The mounting type is free hanging (in-line).
