| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

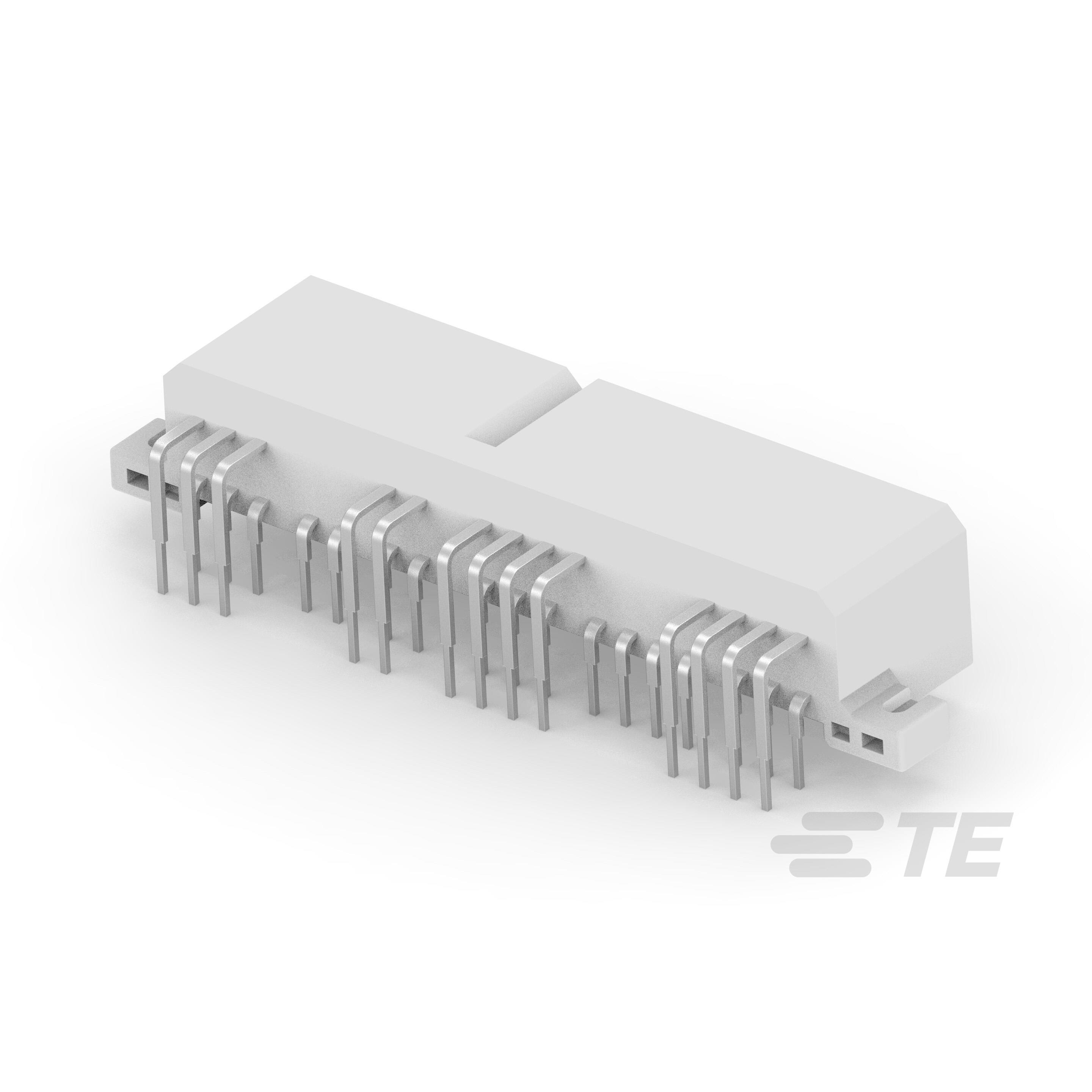

The TE Connectivity 173866-1 is a 30-position, 2-row, 3.5mm pitch right angle header designed for board-to-cable/wire connections. It features a shrouded 4-wall design with a locking ramp for secure mating. The header uses through hole solder termination and is made with brass contacts plated with tin. The insulation is natural colored polybutylene terephthalate (PBT) with a UL94 HB flammability rating. The operating temperature range is -30°C to 105°C. The header includes a mounting flange for additional mechanical stability. The contact length is 4.0mm and the insulation height is 15.8mm. This component is suitable for various interconnect applications requiring a reliable right-angle connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.25 | $5.25 |
| 10+ | $5.23 | $5.23 |
| 25+ | $3.94 | $3.94 |
| 50+ | $3.90 | $3.90 |
| 100+ | $3.66 | $3.66 |
| 250+ | $3.30 | $3.30 |
| 500+ | $3.28 | $3.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions in 2 rows.
3.5mm (0.138 inches).
Varies by wire gauge.
Through hole, right angle with solder termination.
-30°C to 105°C.
Polybutylene Terephthalate (PBT) with UL94 HB rating.
RoHS3 compliant (unverified).
