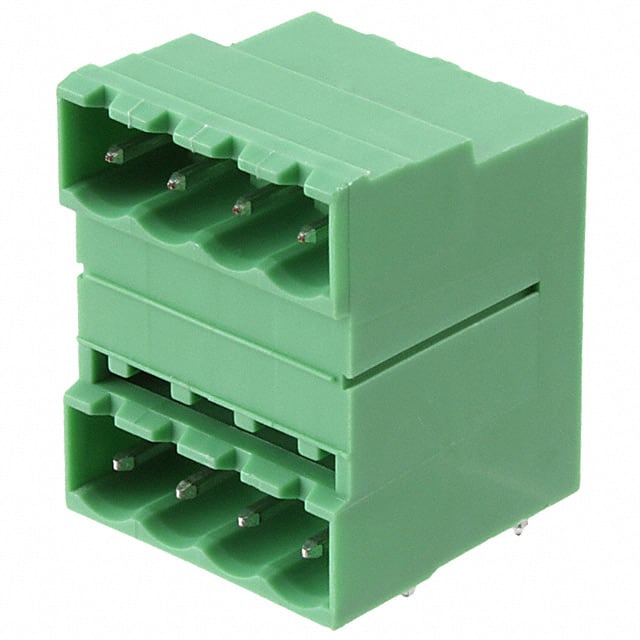

1736713 This is an 8 position, 2 level, 5.08mm pitch right angle terminal block header from Phoenix Contact. It features a shrouded male pin design with through hole mounting and solder termination.
Mfr Part #:

1736713

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is an 8 position, 2 level, 5.08mm pitch right angle terminal block header from Phoenix Contact. It features a shrouded male pin design with through hole mounting and solder termination.
✓ Total Stock: 40 pcs

1736713 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1736713 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1736713 Description

Short technical summary and product information.

The Phoenix Contact 1736713 is a terminal block header designed for wire-to-board connections. It has 8 positions arranged in 2 levels with a 5.08mm pitch, allowing for compact wiring. The header is right angle oriented and features a shrouded (4 side) design for enhanced protection. It is rated for 300V and 15A, suitable for industrial control applications. The through hole mounting and solder termination ensure reliable mechanical and electrical connections. The green housing and tin contact finish provide durability and corrosion resistance.

1736713 Quick Information

Product Type: Terminal Block Header
Series: MDSTB 2,5/..-G1
Canonical Name: 8 Position 5.08mm Pitch Right Angle Header, Male Pins, Shrouded
Subcategory: Headers

1736713 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1736713 Features

  • 8 positions in 2 levels.
  • 5.08mm pitch for compact wiring.
  • Right angle orientation for PCB edge.
  • Shrouded header with 4 side protection.
  • Rated for 300V and 15A.

1736713 Applications

  • Used in industrial control panels.
  • Suitable for PLC and I/O modules.
  • Ideal for power distribution blocks.
  • Common in building automation systems.

1736713 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

8 positions in 2 levels (4 per level).

What is the pitch?

5.08mm (0.200 inches).

What is the current rating?

15A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole.

What is the header orientation?

Right angle (90°).

What is the contact finish?

Tin.
