1735888 Phoenix Contact 1735888 is a 3 position, 10mm pitch, spring-cage terminal block for wire-to-board applications. Rated at 76A (IEC) / 66A (UL) and 1000V (IEC) / 600V (UL).
Mfr Part #:

1735888

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1735888 is a 3 position, 10mm pitch, spring-cage terminal block for wire-to-board applications. Rated at 76A (IEC) / 66A (UL) and 1000V (IEC) / 600V (UL).
✓ Total Stock: 50 pcs

1735888 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1735888 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Hole Diameter
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1735888 Description

Short technical summary and product information.

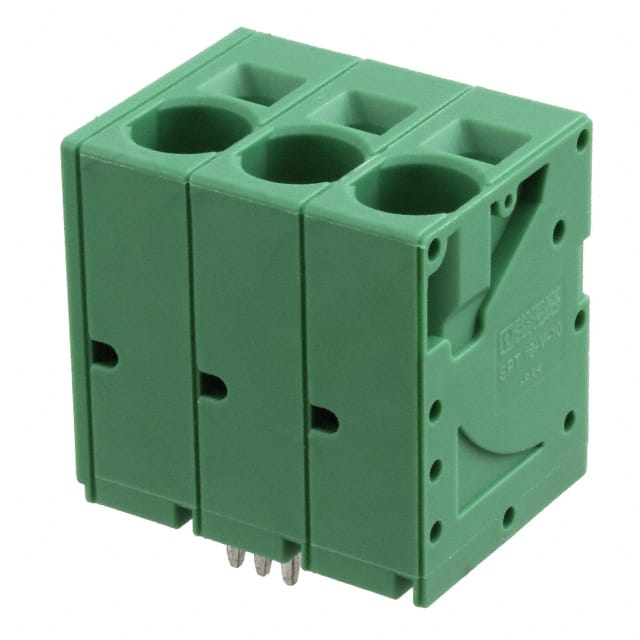

The Phoenix Contact 1735888 (SPT 16/ 3-V-10,0-ZB) is a 3-position, single-level, wire-to-board terminal block with a 10mm pitch. It features a spring-cage termination for fast, tool-free wire connection and is designed for through-hole soldering to the PCB.



Electrical ratings include a nominal current of 76A per IEC and 66A per UL, with voltage ratings of 1000V (IEC) and 600V (UL). The terminal block accepts solid or stranded conductors from 0.75 mm² to 16 mm² (4-20 AWG) and requires an 18mm strip length.



The housing is made of green polyamide (PA) insulating material with a UL94 V0 flammability rating. The part is RoHS3 compliant and has an MSL of 1 (unlimited). Standard packaging is 50 pieces per pack.

1735888 Quick Information

Product Type: Terminal Block
Series: SPT 16/..-V
Canonical Name: Phoenix Contact SPT 16/ 3-V-10,0-ZB 3 Position 10mm Pitch Spring-Cage Terminal Block
Subcategory: Spring-Cage

1735888 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1735888 Features

  • 3 positions with 10mm pitch spacing.
  • Spring-cage termination for tool-free wiring.
  • Rated 76A IEC / 66A UL current.
  • Rated 1000V IEC / 600V UL voltage.
  • Accepts 4-20 AWG solid or stranded wire.

1735888 Applications

  • High-current wire-to-board PCB connections.
  • Industrial control and automation equipment.
  • Power distribution and supply units.
  • Heavy machinery and motor control systems.

1735888 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1735888 terminal block have?

It has 3 positions.

What is the pitch of the 1735888?

The pitch is 10 mm.

What is the current rating of the 1735888?

The IEC nominal current is 76 A, and the UL rating is 66 A.

What is the voltage rating of the 1735888?

The IEC rated voltage is 1000 V, and the UL rated voltage is 600 V.

What mounting type does the 1735888 use?

It is a through-hole mounting terminal block.

What wire gauge does the 1735888 accept?

It accepts 4-20 AWG wire.

Is the 1735888 RoHS compliant?

Yes, it is RoHS3 compliant.
