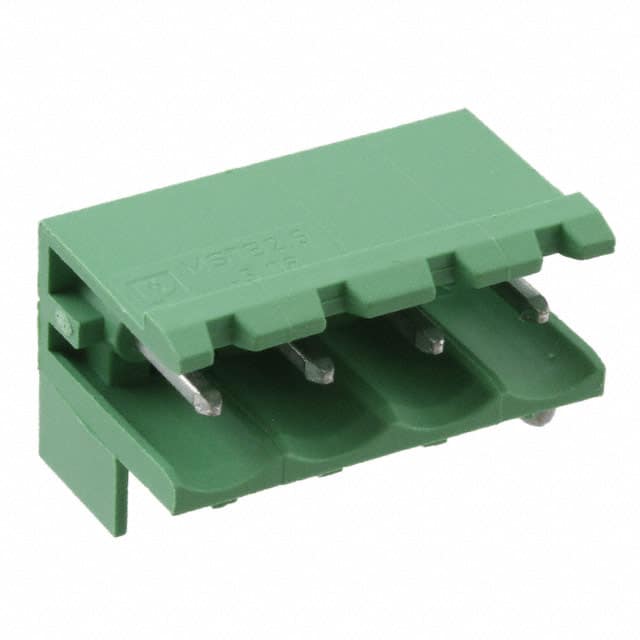

1735866 Phoenix Contact 1735866 is a 4-position, right-angle, through-hole terminal block header with a 5.08mm pitch. Rated for 300V and 15A with tin-plated contact finish.
Mfr Part #:

1735866

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1735866 is a 4-position, right-angle, through-hole terminal block header with a 5.08mm pitch. Rated for 300V and 15A with tin-plated contact finish.
✓ Total Stock: 30 pcs

1735866 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1735866 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1735866 Description

Short technical summary and product information.

The Phoenix Contact 1735866 is a 4-position terminal block header designed for through-hole mounting with a right-angle orientation. It features a 5.08mm pitch and shrouded (2 side) design for secure mating. Rated at 300V and 15A, this header accepts solder termination and has a green housing with tin-plated contact mating finish.



This component is part of the terminal block header family commonly used in industrial control, automation, and power distribution systems. The right-angle configuration allows space-saving PCB layouts. The 5.08mm pitch provides adequate creepage distance for moderate voltage applications.



With a single-level, 4-position per level arrangement, this header supports straightforward point-to-point wiring. The through-hole solder termination ensures reliable mechanical and electrical connections. The tin finish offers good solderability and corrosion resistance for typical operating environments.

1735866 Quick Information

Product Type: Header, Male Pins, Shrouded (2 Side)
Series: MSTBT
Canonical Name: Phoenix Contact 1735866 Header, Male Pins, Shrouded (2 Side), 4 Position, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Headers, Plugs and Sockets

1735866 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1735866 Features

  • 4-position through-hole header with 5.08mm pitch.
  • Rated for 300V and 15A operation.
  • Right-angle orientation for compact layouts.
  • Tin-plated contact mating finish.
  • Shrouded design on two sides for secure mating.

1735866 Applications

  • Used in industrial control panel wiring.
  • Suitable for PLC and I/O module connections.
  • Ideal for power distribution in terminal blocks.
  • Common in building automation and HVAC systems.

1735866 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 4 positions.

What is the pitch (pin spacing) of this header?

The pitch is 5.08mm (0.200").

What is the current rating of this terminal block header?

The current rating is 15 A.

What is the voltage rating of this header?

The voltage rating is 300 V.

What mounting type does this header use?

It uses through-hole mounting.

What termination style does this header have?

Termination is via solder.

What is the orientation of this header?

The header is right-angle (90°) orientation.
