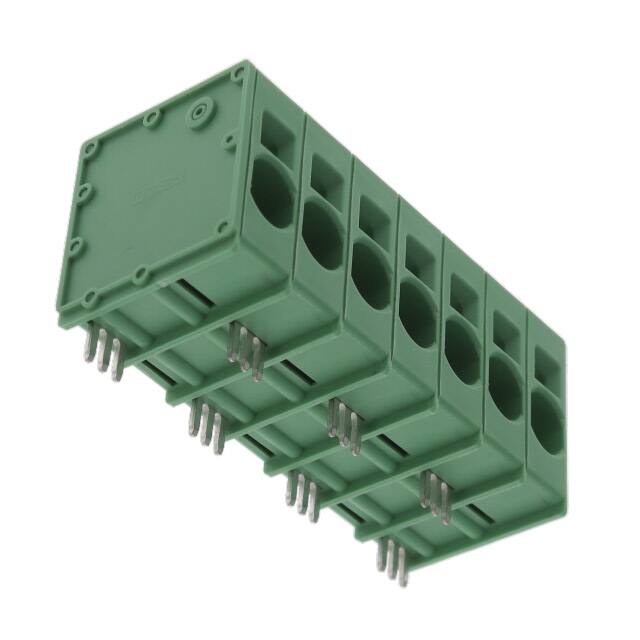

1735833 7-position PCB terminal block from Phoenix Contact with 10mm pitch, spring-cage connection, rated 76A and 1000V.
Mfr Part #:

1735833

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
7-position PCB terminal block from Phoenix Contact with 10mm pitch, spring-cage connection, rated 76A and 1000V.
✓ Total Stock: 2 pcs

1735833 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1735833 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Country of Origin
Current
Current Rating
Hole Diameter
Insulation Material
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1735833 Description

Short technical summary and product information.

The Phoenix Contact 1735833 is a PCB terminal block designed for wire-to-board applications, offering 7 positions with a 10 mm pitch. It features a screwless spring-cage (tension clamp) termination method for quick and reliable conductor connections up to 16 mm² (4-20 AWG). Rated for a nominal current of 76 A and a nominal voltage of 1000 V, this terminal block supports high power distribution on PCBs. The mating orientation is horizontal with the board, and it mounts via through-hole soldering.



Key mechanical specifications include a green PA insulating housing with UL94 V0 flammability rating, pin dimensions of 1.2 x 1 mm, and a stripping length of 18 mm. The block has a dimension of 60 mm and weighs approximately 22.22 g per piece. It complies with EN-VDE connection standards and is supplied with tin-plated solder pins.



Electrical ratings cover rated surge voltages of 8 kV for pollution degree III/3 and III/2, and 6 kV for II/2. The design allows side-by-side mounting for color coding from position to position, making it suitable for organized wiring in industrial control and automation panels.

1735833 Quick Information

Product Type: PCB Terminal Block
Series: SPT 16/..-H
Canonical Name: Phoenix Contact SPT 16/ 7-H-10,0-ZB PCB terminal block
Subcategory: Wire to Board

1735833 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1735833 Features

  • Screwless spring-cage termination for quick wiring.
  • Rated for 76 A and 1000 V operation.
  • 7 positions with 10 mm pitch.
  • Accepts 4-20 AWG conductors up to 16 mm².
  • UL94 V0 flammability rated PA housing.

1735833 Applications

  • Ideal for power distribution in industrial control panels.
  • Used in high-current PCB connections.
  • Suitable for automation and process control systems.
  • Enables organized wiring with side-by-side mounting.

1735833 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1735833 terminal block have?

It has 7 positions.

What is the pitch of the 1735833?

The pitch is 10.00 mm.

What is the current rating of this terminal block?

The nominal current rating is 76 A.

What voltage rating does the 1735833 support?

It is rated for 1000 V (nominal voltage).

What mounting type does it use?

Through hole mounting (soldering).

What wire gauge range is compatible?

It accepts 4-20 AWG conductors (solid or stranded 0.75 to 16 mm²).

What is the flammability rating of the housing?

The insulating material is PA with a flammability rating of UL94 V0.
