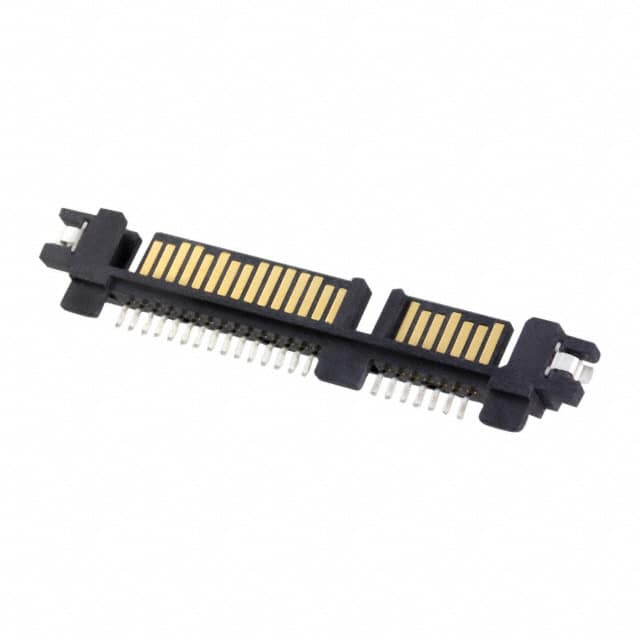

1735783-3 SATA plug connector with 22 positions, surface mount right angle termination, and gold plated contacts.
Mfr Part #:

1735783-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
SATA plug connector with 22 positions, surface mount right angle termination, and gold plated contacts.
✓ Total Stock: 1,390 pcs
$ Price Range: $6.95

1735783-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
1,390 pcs
On Request
1390 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1735783-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Mounting Type
Number of Positions
Tape & Reel
Termination
View Similar Products (0)

1735783-3 Description

Short technical summary and product information.

The TE Connectivity 1735783-3 is a SATA plug connector designed for high-speed data storage applications. It features 22 positions in a right-angle surface mount package, making it suitable for compact PCB layouts. The connector uses solder termination and includes board guide and solder retention features for reliable assembly.



Contact finish is gold with 30µin thickness, ensuring good conductivity and corrosion resistance. The connector is part of the Pluggable Connector Assemblies category and is compliant with RoHS, REACH, and MSL 1 (unverified).



Cross-reference part numbers include Digi-Key's A118058TR-ND (tape and reel) and A118058CT-ND (cut tape).

1735783-3 Quick Information

Product Type: SATA Connector
Canonical Name: SATA Plug Connector, 22 Position, Surface Mount, Right Angle
Subcategory: SATA Connectors

1735783-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1735783-3 Estimated Pricing

Qty Low High
33,600+ $6.95 $6.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

1735783-3 Features

  • SATA plug connector with 22 positions.
  • Surface mount right angle mounting style.
  • Gold plated contacts with 30µin thickness.
  • Includes board guide and solder retention.
  • Solder termination for reliable connections.

1735783-3 Applications

  • Commonly used in SATA storage interfaces.
  • Suitable for internal data cable connections.
  • Applicable in computing and server equipment.

1735783-3 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

22 positions.

What is the mounting type?

Surface mount, right angle.

What is the contact finish?

Gold with 30µin thickness.

What features does this connector include?

Board guide and solder retention.
