| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
408,000 pcs
|
408000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

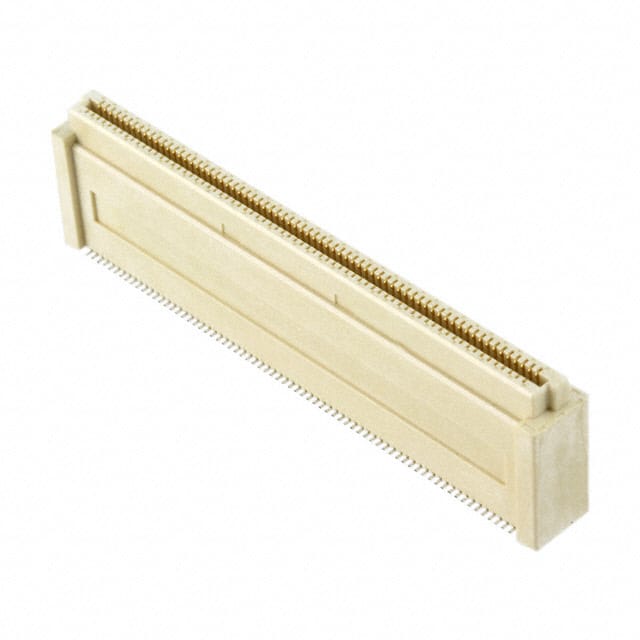

This is a 140-position receptacle connector with outer shroud contacts from TE Connectivity. It features a 2-row configuration with a 0.80mm (0.031") pitch, making it suitable for high-density mezzanine board-to-board interconnections. The connector is surface mount and has a mounting height above board of 0.620" (15.75mm).
The contacts are finished with 8.00µin (0.203µm) of gold for reliable electrical performance. A built-in board guide assists with alignment during assembly. The mated stacking height is 17mm, designed for specific board spacing requirements.
This component is classified under Arrays, Edge Type, Mezzanine (Board to Board) connectors. It is commonly used in applications requiring a robust, high-pin-count connection between parallel PCBs.
140 positions.
0.80mm (0.031").
Surface mount.
Gold, 8.00µin (0.203µm) thickness.
17mm.
Yes, it includes a board guide.
0.620" (15.75mm).
