| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

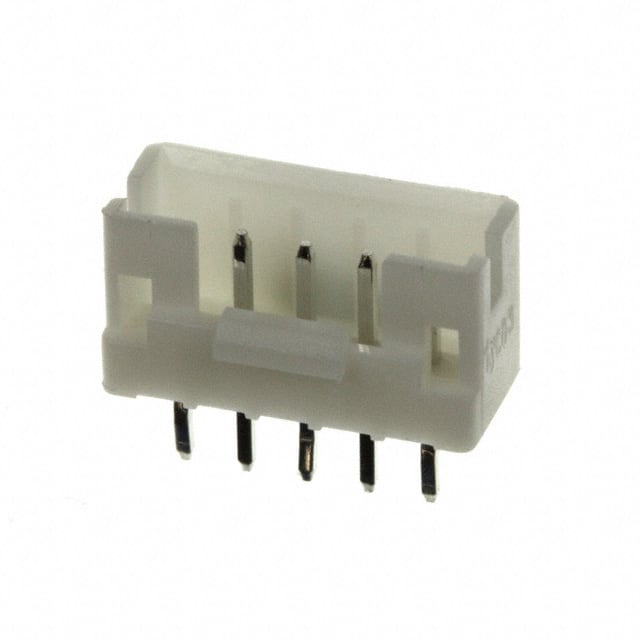

The TE Connectivity 1735446-5 is a 5-position, single-row header connector with a 2.00mm pitch. It is part of the board-to-cable/wire category and features a shrouded 3-wall design for alignment and protection. The contacts are male pins made of copper alloy with a tin finish, rated for 3A per contact and 250V. The insulation is natural thermoplastic with a UL94 V-0 flammability rating, and the operating temperature range is -25°C to 85°C. Mounting is through-hole with press-fit or solder termination. The fastening type is a locking ramp to ensure secure mating. This connector is suitable for a variety of low-power signal and power applications requiring reliable connections.
It has 5 positions in a single row.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A per contact.
The voltage rating is 250V.
It is through-hole mounting, supporting press-fit or solder termination.
The operating temperature range is -25°C to 85°C.
The insulation material has a UL94 V-0 flammability rating.
