| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Voltage Rating |

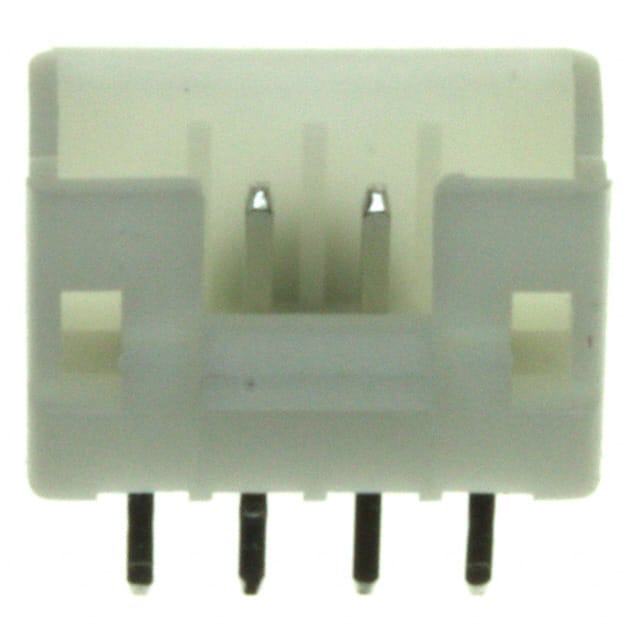

The TE Connectivity 1735446-4 is a 4-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 2.00mm pitch and through-hole mounting with both press-fit and solder termination options.
The header uses square male pin contacts made of copper alloy with a tin finish. The natural thermoplastic insulator has a UL94 V-0 flammability rating and an insulation height of 6.07mm. A locking ramp fastening type ensures secure mating.
Rated for 3A current and 250V voltage, the connector operates over a temperature range of -25°C to 85°C. The shrouded 3-wall design provides protection for the contacts during mating and unmating.
The pitch is 2.00mm (0.079 inches).
It has 4 positions in a single row, all loaded.
It is rated for 3A current and 250V voltage.
It uses through-hole mounting with press-fit and solder termination.
The operating temperature range is -25°C to 85°C.
