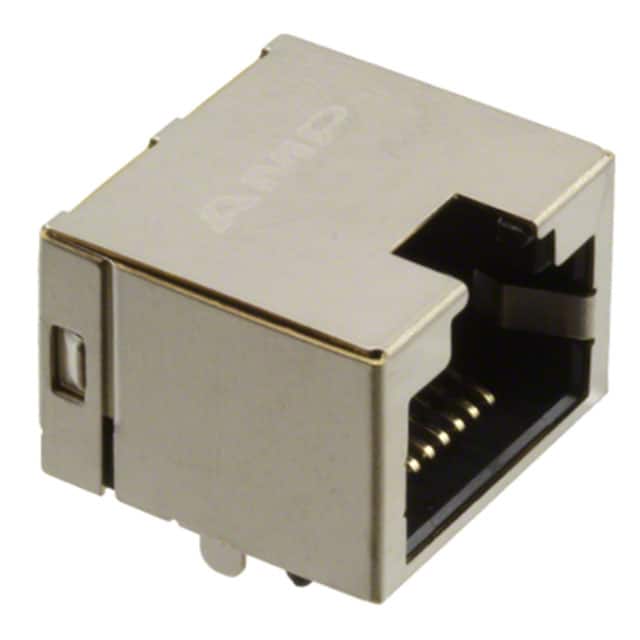

1734795-1 TE Connectivity 1734795-1 is a shielded RJ45 modular jack with 8P8C (8 position 8 contact) configuration. It features through hole right angle mounting, gold plated phosphor bronze contacts, and solder termination.
Mfr Part #:

1734795-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1734795-1 is a shielded RJ45 modular jack with 8P8C (8 position 8 contact) configuration. It features through hole right angle mounting, gold plated phosphor bronze contacts, and solder termination.
✓ Total Stock: 1,600 pcs

1734795-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1734795-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Halogen Free
LED Color
Lead Spacing
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
SVHC Present
Shielding
Storage Temperature
Tab Direction
Termination
Termination Style
View Similar Products (0)

1734795-1 Description

Short technical summary and product information.

The TE Connectivity 1734795-1 is a modular jack connector designed for 8P8C (RJ45) Ethernet applications. It has a single port with one row of contacts and is terminated via through hole soldering. The connector is oriented at a 90° right angle and features a shielded housing to reduce electromagnetic interference. It has a board guide for alignment during assembly. The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections. The jack is rated for Category 3 (Cat3) applications, suitable for voice and 10Base-T networks. This connector does not include an LED indicator. Compliance data indicates RoHS3, REACH unaffected, and MSL level 1, though these are unverified. The part is packaged in a through hole, solder termination style.

1734795-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, RJ45, 8P8C, Through Hole, Right Angle, Shielded
Subcategory: Shielded Modular Jack

1734795-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1734795-1 Features

  • Shielded RJ45 connector for EMI protection.
  • 8P8C single port configuration.
  • Through hole right angle mounting.
  • Gold plated phosphor bronze contacts.
  • Cat3 rated for 10Base-T networks.

1734795-1 Applications

  • Suitable for low-speed Ethernet and voice applications.
  • Ideal for network interface cards and routers.
  • Used in telecommunications equipment.
  • Board guide aids in reliable PCB alignment.

1734795-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8P8C (RJ45, Ethernet).

What is the mounting type?

Through hole.

What is the orientation of the connector?

90° angle (right).

Is the connector shielded?

Yes, shielded.

What is the contact finish?

Gold.

What is the rating of this connector?

Cat3.

Does the connector have an LED indicator?

No, it does not contain an LED.
