| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Lock | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| USB Version | |
| Voltage | |
| Voltage Rating |

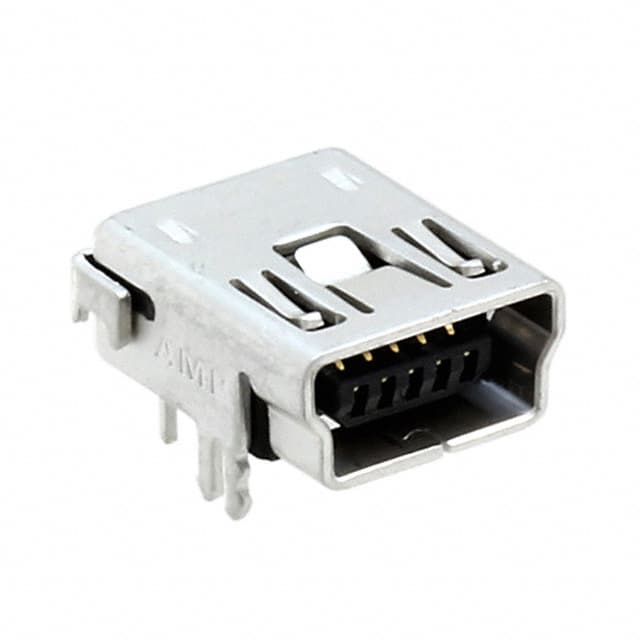

The TE Connectivity 1734510-2 is a USB 2.0 Mini B receptacle connector designed for reliable data and power connections. It features a right-angle through-hole mounting style with a horizontal orientation, making it suitable for space-constrained PCB layouts. The connector has 5 contacts (1 port) and is terminated via solder for secure attachment.
Electrically, it supports USB 2.0 specifications with a current rating of 1A and a voltage rating of 30VAC. The receptacle is shielded to provide EMI protection, and includes a board lock feature for improved mechanical retention during assembly and use. It is rated for up to 5000 mating cycles, ensuring long-term durability.
The operating temperature range spans from -40°C to 85°C, allowing use in a variety of environments. This connector is commonly used in consumer electronics, industrial controls, and portable devices requiring a compact USB Mini B interface.
5 contacts.
1A.
30VAC.
Through hole, right angle, with horizontal mounting feature.
USB 2.0.
Yes, shielded.
-40°C to 85°C.
