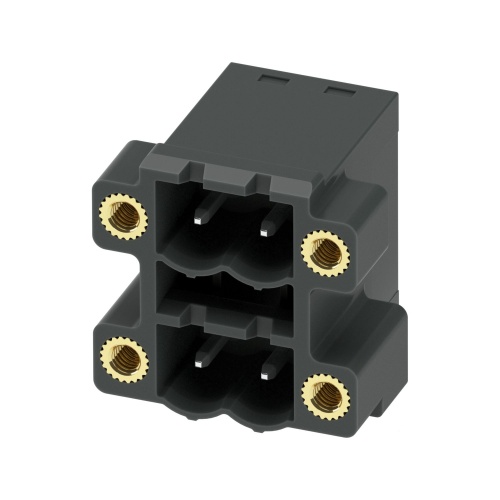

1734449 The Phoenix Contact 1734449 is a two-position, 5mm pitch shrouded PCB header with right-angle orientation and through-hole mounting. It is rated for 12A and 400V.
Mfr Part #:

1734449

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 1734449 is a two-position, 5mm pitch shrouded PCB header with right-angle orientation and through-hole mounting. It is rated for 12A and 400V.
✓ Total Stock: 2,050 pcs
$ Price Range: $10.19

1734449 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,050 pcs
On Request
2050 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1734449 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1734449 Description

Short technical summary and product information.

The Phoenix Contact 1734449 is a printed-circuit board header from the CCDN 2,5/..-G1F-THR series. This two-position, 5mm pitch connector features a right-angle, shrouded design with male pins and a mating flange. It is configured as a double-level base strip, allowing compact PCB layouts and integration in SMT reflow processes.



Electrical ratings include a nominal current of 12A and a rated voltage of 400V for category III/2, with a rated surge voltage of 4kV. The insulating material is LCP with UL94 V0 flammability, and contacts feature a tin mating finish. The header supports a hole diameter of 1.6mm and pin dimensions of 1 x 1mm.



Designed for through-hole mounting with solder termination, this header measures 17.6mm in length and weighs 5.44g per piece. It is optimized for parallel plug-in direction to the PCB and can be specially combined with FKCN 2,5 compact spring-cage plugs. The product is available in black, with a packing unit of 1 piece and a minimum order quantity of 50 pieces.



Applications include industrial control systems, power distribution, and automation equipment where reliable PCB-to-wire connections are required.

1734449 Quick Information

Product Type: PCB Header
Series: CCDN 2,5/..-G1F-THR
Canonical Name: CCDN 2,5/ 2-G1F P26 THR - PCB Header, 2 Positions, 5mm Pitch
Subcategory: Terminal Block Headers

1734449 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1734449 Estimated Pricing

Qty Low High
1+ $10.19 $10.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

1734449 Features

  • Two-position 5mm pitch PCB header.
  • Rated for 12A and 400V operation.
  • Right-angle shrouded male pin design.
  • Through-hole mounting with solder termination.
  • LCP UL94 V0 insulating material.

1734449 Applications

  • For PCB wire-to-board connections in industrial gear.
  • Mates with FKCN 2,5 compact spring-cage plugs.
  • Use in SMT reflow assembly processes.
  • For right-angle wiring parallel to the PCB.

1734449 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 2 positions.

What is the pitch of this PCB header?

The pitch is 5mm (0.197 inches).

What is the current rating?

The nominal current rating is 12A.

What is the rated voltage?

The rated voltage for category III/2 is 400V.

What mounting type does this header use?

It is a through-hole mounting header with solder termination.

What is the UL 94 flammability rating?

The insulating material has a UL 94 flammability rating of V0.

What is the contact mating finish?

The contact mating finish is tin.
