| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

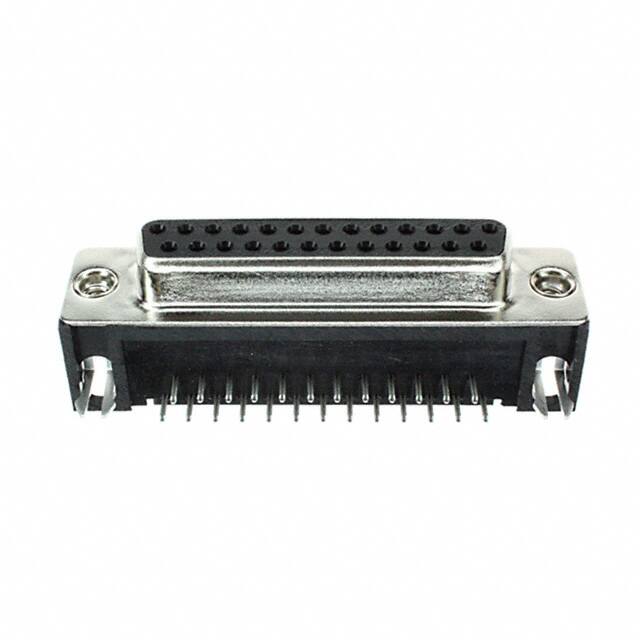

The TE Connectivity 1734350-2 is a 25-position D-Sub receptacle connector designed for reliable signal connections. It features a right-angle through-hole mounting style with solder termination, making it suitable for space-constrained PCB layouts. The connector has a steel shell with nickel plating and gold-plated contacts (15.0µin) for corrosion resistance and reliable conductivity. It includes a board lock feature for secure attachment to the PCB. The shell size is DB-3 (B) with a flange feature using 4-40 threads. The backset spacing is 0.318" (8.08mm). Rated for 2A current, the insulator material meets UL94 V-0 flammability rating. This connector is commonly used in industrial, telecommunications, and computing applications requiring a compact and robust D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 15+ | $5.04 | $5.04 |
| 75+ | $4.85 | $4.85 |
| 360+ | $4.65 | $4.65 |
| 5,000+ | $3.32 | $3.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
2 amps.
Through-hole, right-angle mounting.
Gold, 15.0µin (0.38µm).
Yes, it includes a board lock for secure PCB attachment.
Steel with nickel plating.
UL94 V-0.
