| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

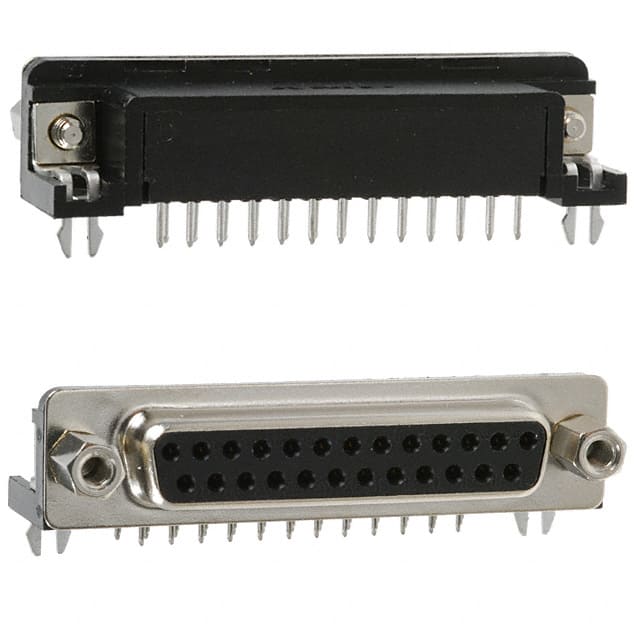

The TE Connectivity 1734349-1 is a D-Sub receptacle connector assembly featuring 25 female socket contacts arranged in 2 rows with a DB-3 (B) shell size. It is designed for right angle through hole mounting, making it suitable for compact PCB layouts where the connector must be parallel to the board surface.
Electrical specification includes a current rating of 2A per contact with gold flash contact finish for reliable signal transmission and corrosion resistance. The connector uses signal contacts and solder termination for permanent attachment. Mechanical features include a steel shell with nickel plating, board lock for secure PCB retention, and a mating side female screwlock (4-40) flange for stable mating.
The insulator material has a UL94 V-0 flammability rating, ensuring compliance with fire safety standards. The backset spacing of 8.08mm provides proper clearance for the right angle design.
25 positions in 2 rows.
2 amperes (2A) per contact.
Through hole, right angle solder termination.
Gold flash contact finish.
Steel with nickel plating.
