| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,000 pcs
|
11000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| SVHC Present | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| USB Standard | |
| Voltage | |
| Voltage - Rated |

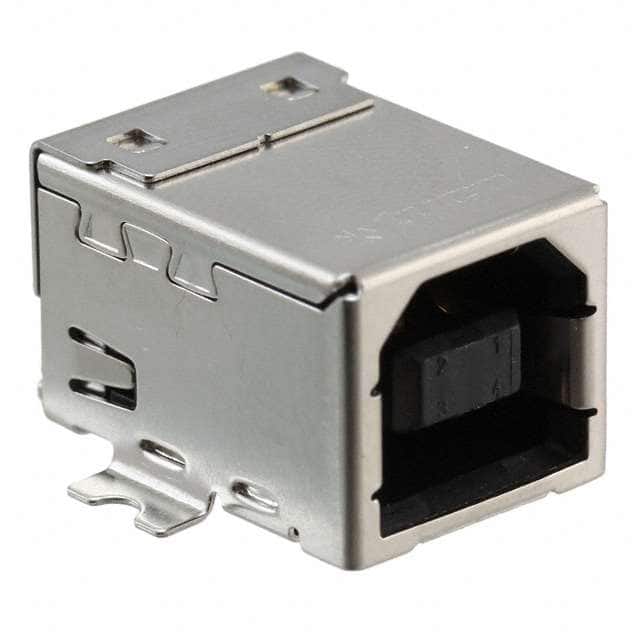

The 1734346-1 from TE Connectivity is a USB Type-B receptacle connector designed for USB 2.0 applications. It has 4 contacts in a single port configuration. The connector is rated for a current of 1A and a voltage of 30VAC.
This connector uses a surface mount, right angle termination style for horizontal mounting on a PCB. It includes board guide and solder retention features for reliable assembly and alignment during manufacturing. The operating temperature range is 0°C to 50°C.
The connector supports up to 1500 mating cycles, ensuring durability for repeated use. It is suitable for applications requiring a standard USB Type-B interface in a space-constrained design.
USB-B (USB TYPE-B), Receptacle.
4 contacts.
1A.
30VAC.
Surface mount, right angle.
0°C to 50°C.
1500 cycles.
