| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,340 pcs
|
2340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Specifications | |
| Storage Temperature | |
| Termination | |
| Voltage |

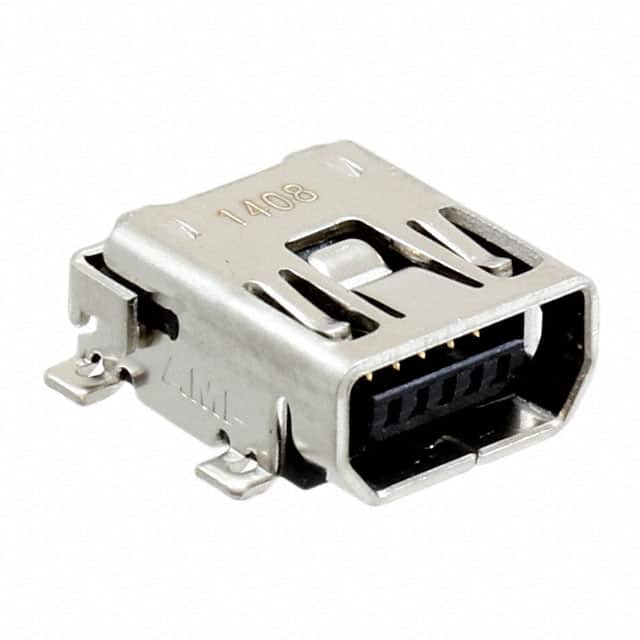

The TE Connectivity 1734328-1 is a USB 2.0 Mini AB receptacle connector designed for reliable data and power connections. It features a receptacle gender with 5 contacts in a single port configuration. The connector is surface mounted with a right angle orientation, making it suitable for compact PCB layouts where space is limited. Termination is via solder, and the part includes board guide and solder retention features to aid in assembly and mechanical stability.
Electrically, the connector is rated for 1A current and 30VAC voltage, supporting standard USB 2.0 data rates. It is designed for 5000 mating cycles, ensuring durability in applications requiring frequent connection and disconnection. The operating temperature range spans -40°C to 85°C, allowing use in a variety of environments.
The connector's horizontal mounting feature and right angle design enable efficient use of board space, particularly in edge-mounted or low-profile applications. The board guide assists in alignment during automated assembly, while solder retention helps maintain joint integrity under vibration or thermal cycling.
1A.
30VAC.
Surface mount, right angle.
5 contacts.
-40°C to 85°C.
5000 cycles.
Board guide and solder retention.
