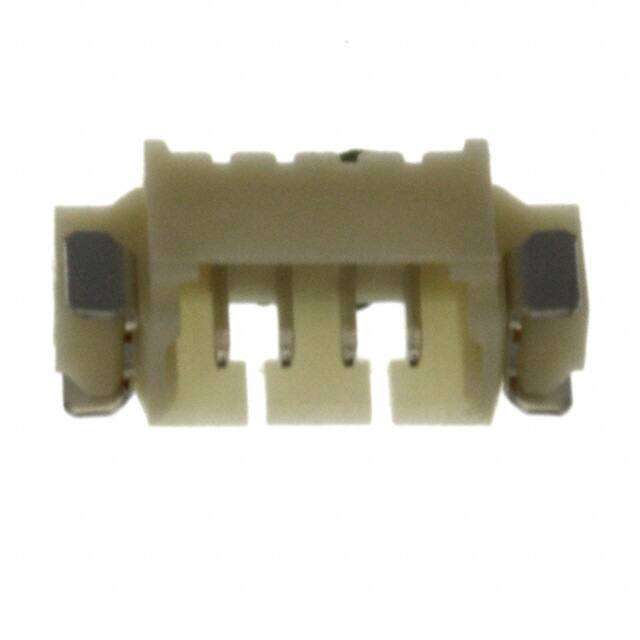

1734261-4 TE Connectivity 1734261-4 is a 4-position, 1.25mm pitch, surface mount right angle header. It features a shrouded 4-wall design, tin-plated phosphor bronze contacts, and solder retention.
Mfr Part #:

1734261-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1734261-4 is a 4-position, 1.25mm pitch, surface mount right angle header. It features a shrouded 4-wall design, tin-plated phosphor bronze contacts, and solder retention.
✓ Total Stock: 1,000 pcs
$ Price Range: $1.22 - $2.44

1734261-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1734261-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1734261-4 Description

Short technical summary and product information.

The TE Connectivity 1734261-4 is a 4-position, 1.25mm pitch header designed for board-to-cable/wire connections. It features a surface mount, right angle mounting style with solder termination. The connector is shrouded with a 4-wall design, providing robust protection for the male pins. Contacts are made of phosphor bronze with a tin finish (100µin thickness) and have a rectangular shape. The insulation is natural thermoplastic with a UL94 V-0 flammability rating and an insulation height of 3.46mm. Electrical ratings include 1A current and 100VAC voltage. The operating temperature range is -25°C to 85°C. Solder retention features ensure reliable mechanical attachment during assembly. This header is suitable for compact electronic devices requiring a low-profile, right-angle interconnect.

1734261-4 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1734261-4 Header, Male Pins, 4 Position, 1.25mm Pitch, Surface Mount, Right Angle
Subcategory: Male Pins

1734261-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1734261-4 Estimated Pricing

Qty Low High
1+ $2.44 $2.44
10+ $2.02 $2.02
25+ $1.93 $1.93
100+ $1.80 $1.80
250+ $1.63 $1.63
500+ $1.50 $1.50
1,000+ $1.22 $1.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

1734261-4 Features

  • 4-position 1.25mm pitch header.
  • Surface mount right angle mounting.
  • Shrouded 4-wall design.
  • Tin-plated phosphor bronze contacts.
  • Solder retention feature.

1734261-4 Applications

  • Designed for board-to-cable/wire connections.
  • Suitable for compact electronic assemblies.
  • Common in consumer electronics and industrial equipment.

1734261-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

4 positions.

What is the pitch?

1.25mm (0.049 inches).

What is the current rating?

1A per contact.

What is the voltage rating?

100VAC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-25°C to 85°C.

What is the contact finish?

Tin, 100µin (2.54µm) thickness.
