1734248-3 by TE Connectivity AMP Connectors

1734248-3 by TE Connectivity AMP Connectors

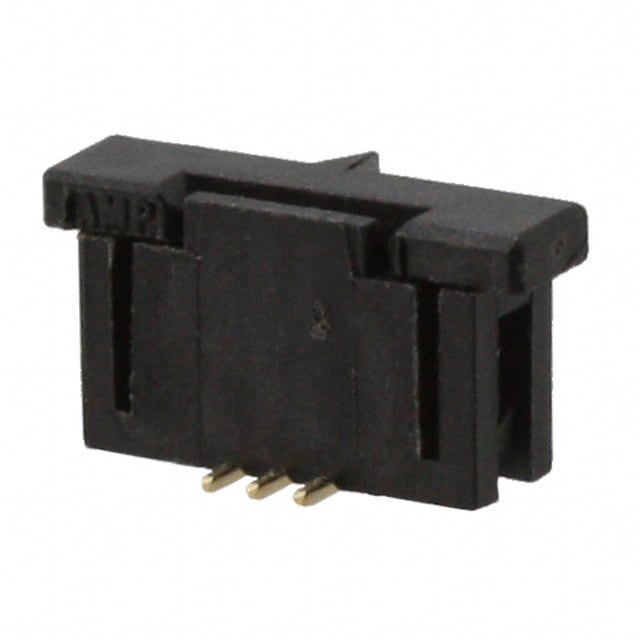

CONN FPC VERT 3POS 1MM SMD

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

1734248-3

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
In Stock: 78645 *Can dispatch immediately
Unit Price $0.47
Factory Stock: 87,99,542
Factory Lead time 12 Weeks
Minimum Order Quantity: 1

Specifications of 1734248-3

Product Attribute
Attribute Value
Select Attribute
Category
FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer
TE Connectivity AMP Connectors
Cable End Type
Tapered
Connector
Contacts, Vertical - 1 Sided
Contact Finish
Gold
Contact Material
Phosphor Bronze
FFC, FCB Thickness
0.30mm
Features
Zero Insertion Force (ZIF)
Flat Flex Type
FPC
Height Above Board
0.217" (5.50mm)
Housing Material
Polyamide (PA9T), Nylon 9T
Locking Feature
Slide Lock
Material Flammability Rating
UL94 V-0
Mounting Type
Surface Mount
Number of Positions
3
Operating Temperature
-20掳C ~ 85掳C
Pitch
0.039" (1.00mm)
Termination
Solder
Voltage Rating
125V
Actuator Material
Polyamide (PA9T), Nylon 9T
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 1734248-3

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 1734248-3

Datasheet
  Datasheet

Environmental & Export Classifications of 1734248-3

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 1734248-3

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
