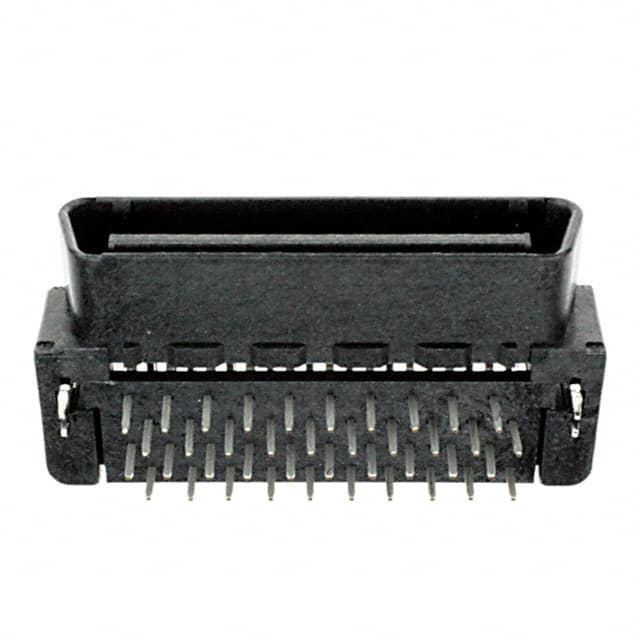

1734099-4 TE Connectivity 1734099-4 is a 40-position board to board plug connector with center strip contacts, through hole right angle mounting, and solder termination.
Mfr Part #:

1734099-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1734099-4 is a 40-position board to board plug connector with center strip contacts, through hole right angle mounting, and solder termination.
✓ Total Stock: 1,350 pcs
$ Price Range: $4.15 - $7.02

1734099-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
1,350 pcs
On Request
1350 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1734099-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Mounting Type
Number of Positions
Number of Rows
Tape & Reel
Termination
Termination Style
Type
View Similar Products (0)

1734099-4 Description

Short technical summary and product information.

The TE Connectivity 1734099-4 is a board to board plug connector designed for reliable parallel board stacking applications. It features 40 positions arranged in 2 rows with center strip contact style, providing a robust interconnection solution.



This connector utilizes through hole right angle mounting with solder termination, making it suitable for perpendicular board-to-board connections. The contacts are finished with gold flash for reliable conductivity and corrosion resistance. A board lock feature is included to secure the connector during soldering and use.



The connector is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. It is categorized under Centronics Connectors within the D-Sub, D-Shaped Connectors family.

1734099-4 Quick Information

Product Type: Board to Board Connector
Series: Series I
Canonical Name: TE Connectivity 1734099-4 Board to Board Plug Connector, 40 Position, Through Hole Right Angle, Solder Termination
Subcategory: Centronics Connectors

1734099-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1734099-4 Estimated Pricing

Qty Low High
1+ $7.02 $7.02
10+ $6.35 $6.35
25+ $6.00 $6.00
45+ $5.85 $5.85
90+ $5.56 $5.56
270+ $4.97 $4.97
540+ $4.68 $4.68
1,035+ $4.15 $4.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

1734099-4 Features

  • 40 positions in 2 rows for dense interconnects.
  • Through hole right angle mounting for perpendicular connections.
  • Gold flash contacts for reliable conductivity.
  • Board lock feature for secure attachment.
  • RoHS3 compliant and MSL 1 unlimited.

1734099-4 Applications

  • Used in parallel board-to-board stacking applications.
  • Suitable for perpendicular PCB interconnection designs.
  • Ideal for dense electronic assemblies requiring 40 I/O.

1734099-4 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 1734099-4 connector have?

The connector has 40 positions arranged in 2 rows.

What is the mounting type of this connector?

Through hole, right angle mounting.

What is the contact finish on the 1734099-4?

Gold flash contact finish.

Does this connector have any special features?

Yes, it includes a board lock feature.
