| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,100 pcs
|
9100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,355 pcs
|
8355 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,252 pcs
|
1252 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

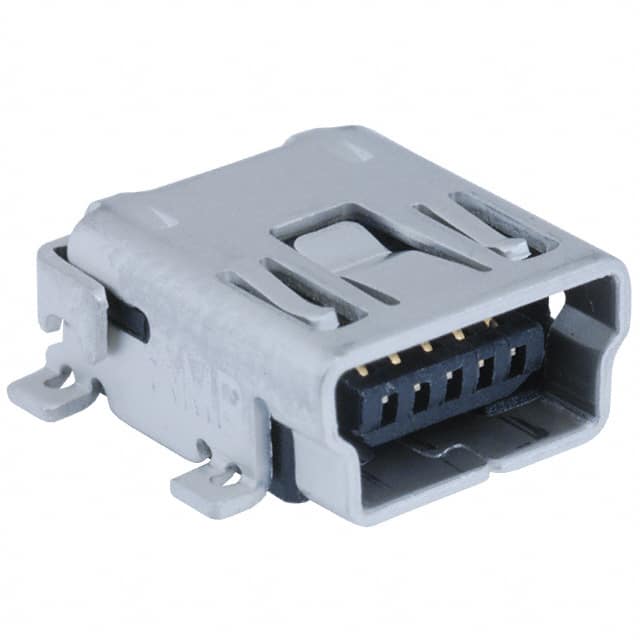

The TE Connectivity 1734035-2 is a USB 2.0 Mini B receptacle connector designed for surface mount assembly. It features a right angle orientation with horizontal mounting, making it suitable for compact PCB layouts where space is constrained. The connector has 5 contacts and a single port, with shielding for electromagnetic interference protection. It includes board guide and solder retention features to ensure reliable placement and soldering during manufacturing.
Electrically, the connector is rated for 1 A current and 30 VAC, supporting standard USB 2.0 data transfer and power delivery. It operates over a temperature range of -40°C to 85°C and is rated for 5000 mating cycles, indicating good durability for repeated use. The termination style is solder, and the connector is shielded to reduce EMI.
This connector is commonly used in portable electronics, consumer devices, and applications requiring a compact USB interface. The right angle SMD package allows for low-profile designs, and the board guide aids in automated assembly. The solder retention feature helps maintain joint integrity during thermal cycling.
5 contacts.
1 A.
30 VAC.
Surface Mount, Right Angle.
-40°C to 85°C.
5000 cycles.
Yes, shielded.
