| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,661 pcs
|
2661 pcs | On Request | 1 | On Request | On Request | /+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

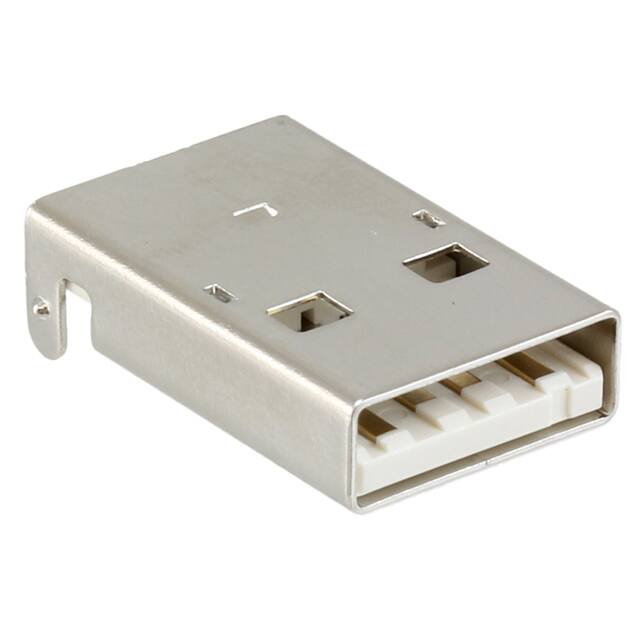

The TE Connectivity 1734028-1 is a USB-A (USB TYPE-A) plug connector designed for USB 2.0 applications. It has 4 contacts and a single port, with a current rating of 1.5 A and a voltage rating of 30 VDC. The connector is shielded for electromagnetic interference protection and is rated for 1500 mating cycles.
This connector uses a surface mount, right angle termination with solder contacts. The mounting feature is horizontal, making it suitable for edge-mounted or low-profile designs on a printed circuit board. The operating temperature range is 0°C to 50°C.
It is commonly used in consumer electronics, data interfaces, and peripheral connections where a standard USB Type-A plug interface is required. The right angle orientation helps in space-constrained layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.40 | $1.40 |
| 10+ | $1.19 | $1.19 |
| 25+ | $1.06 | $1.06 |
| 100+ | $1.02 | $1.02 |
| 250+ | $0.89 | $0.89 |
| 500+ | $0.84 | $0.84 |
| 1,000+ | $0.81 | $0.81 |
| 2,500+ | $0.81 | $0.81 |
| 5,000+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a USB-A (USB TYPE-A) plug connector.
It supports USB 2.0.
The current rating is 1.5 A.
The voltage rating is 30 VDC.
It uses surface mount, right angle termination with a horizontal mounting feature.
It has 4 contacts.
Yes, it is shielded.
