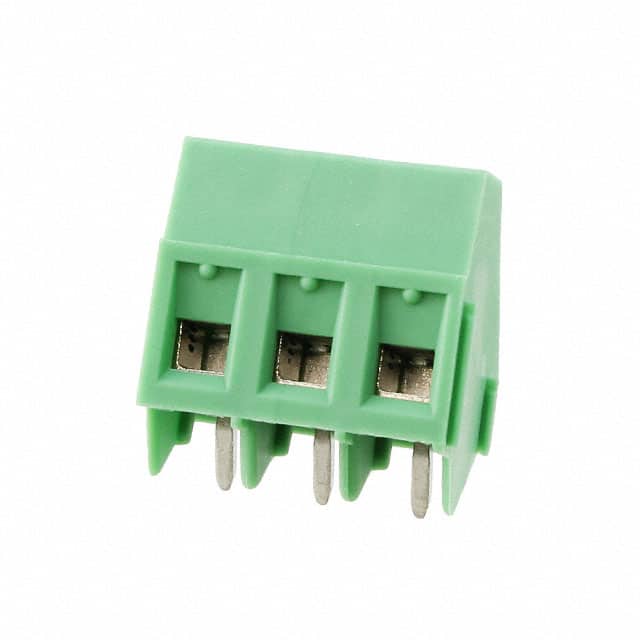

1733583 Phoenix Contact 1733583 is a 3 position wire to board terminal block with 5.08mm pitch, rated for 15A and 300V. It features a through hole mounting and screw rising cage clamp termination.
Mfr Part #:

1733583

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1733583 is a 3 position wire to board terminal block with 5.08mm pitch, rated for 15A and 300V. It features a through hole mounting and screw rising cage clamp termination.
✓ Total Stock: 500 pcs

1733583 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1733583 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1733583 Description

Short technical summary and product information.

The Phoenix Contact 1733583 is a 3 position wire to board terminal block designed for reliable PCB connections. It features a 5.08mm pitch and a 55° (125°) mating orientation with the board, allowing for angled wire entry. The terminal block is rated for 15A current and 300V voltage, accommodating wire gauges from 14 to 30 AWG.



Termination is via a screw rising cage clamp, providing a secure and vibration-resistant connection. The component is through hole mounted and comes in a green housing. Side interlocking features enable the assembly of multiple blocks for additional positions.



This terminal block is suitable for industrial control, power distribution, and general purpose PCB wiring applications where a compact and robust connection is required.

1733583 Quick Information

Product Type: Wire to Board Terminal Block
Series: COMBICON SMKDSP
Canonical Name: Phoenix Contact 1733583 3 Position 5.08mm Pitch Wire to Board Terminal Block
Subcategory: Terminal Block Accessories

1733583 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1733583 Features

  • 3 positions with 5.08mm pitch spacing.
  • Rated for 15A current and 300V voltage.
  • Screw rising cage clamp wire termination.
  • Through hole mounting with 55° mating angle.
  • Side interlocking for multi-block assembly.

1733583 Applications

  • PCB wire termination in industrial controls.
  • Power distribution on printed circuit boards.
  • Angled wire entry for space-constrained layouts.
  • Multi-position terminal strips via side interlocking.

1733583 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1733583 terminal block have?

It has 3 positions per level with 1 level.

What is the pitch of the Phoenix Contact 1733583?

The pitch is 5.08mm (0.200 inches).

What are the current and voltage ratings for this terminal block?

It is rated for 15A current and 300V voltage.

What wire gauge range does the 1733583 accept?

It accepts wire gauges from 14 to 30 AWG.

What is the mounting type for this terminal block?

It is a through hole mounting component.

What type of wire termination does the 1733583 use?

It uses a screw rising cage clamp termination.

What is the mating orientation of this terminal block?

The mating orientation is 55° (125°) angle with the board.
