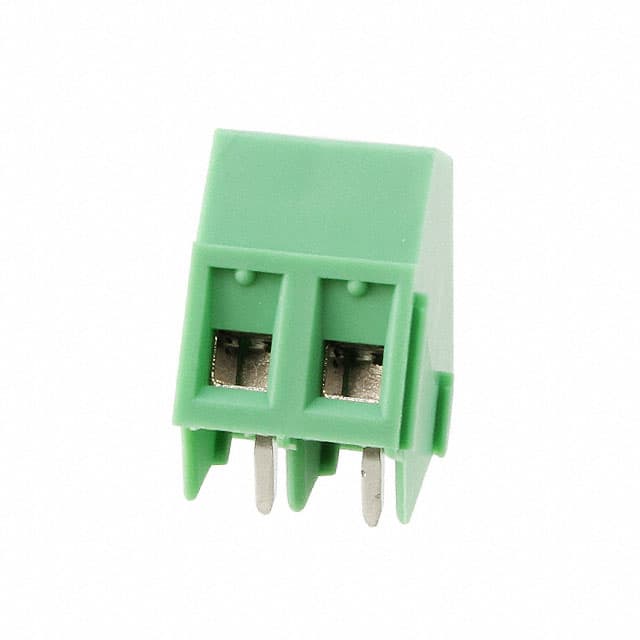

1733570 Phoenix Contact 1733570 is a 2 position wire to board terminal block with 5.08mm pitch, rated for 15A and 300V. It features through hole mounting and screw rising cage clamp termination.
Mfr Part #:

1733570

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1733570 is a 2 position wire to board terminal block with 5.08mm pitch, rated for 15A and 300V. It features through hole mounting and screw rising cage clamp termination.
✓ Total Stock: 27 pcs

1733570 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1733570 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1733570 Description

Short technical summary and product information.

The Phoenix Contact 1733570 is a 2 position wire to board terminal block designed for PCB mounting with a 5.08mm pitch. It supports a wide wire gauge range of 14-30 AWG and is rated for 15A current and 300V voltage.



The terminal block uses a screw - rising cage clamp wire termination method and features a 55° (125°) mating orientation with the board. The side interlocking feature allows for multi-position assemblies, and the green housing indicates standard terminal block coloring.



This component is through hole mounted, making it suitable for wave soldering processes. The 5.08mm (0.200") lead spacing aligns with common industry standards for industrial control and power distribution applications.

1733570 Quick Information

Product Type: Wire to Board Terminal Block
Series: COMBICON SMKDSP
Canonical Name: Phoenix Contact 1733570 2 Position 5.08mm Pitch Wire to Board Terminal Block
Subcategory: 2 Position

1733570 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1733570 Features

  • 2 positions with 5.08mm pitch
  • Rated 15A at 300V
  • Screw rising cage clamp termination
  • Through hole mounting with 55° mating angle
  • Side interlocking for multi-position assemblies

1733570 Applications

  • PCB wire interface for industrial controls
  • Power distribution in automation equipment
  • Connection of sensors and actuators
  • Building and infrastructure electrical panels

1733570 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1733570 have?

It has 2 positions (2 positions per level, 1 level).

What is the pitch of this terminal block?

The pitch is 5.08mm (0.200").

What are the current and voltage ratings of the 1733570?

It is rated for 15A and 300V.

What mounting type does this terminal block use?

It uses through hole mounting.

What wire gauge range does the 1733570 support?

It supports 14-30 AWG wire.
