| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

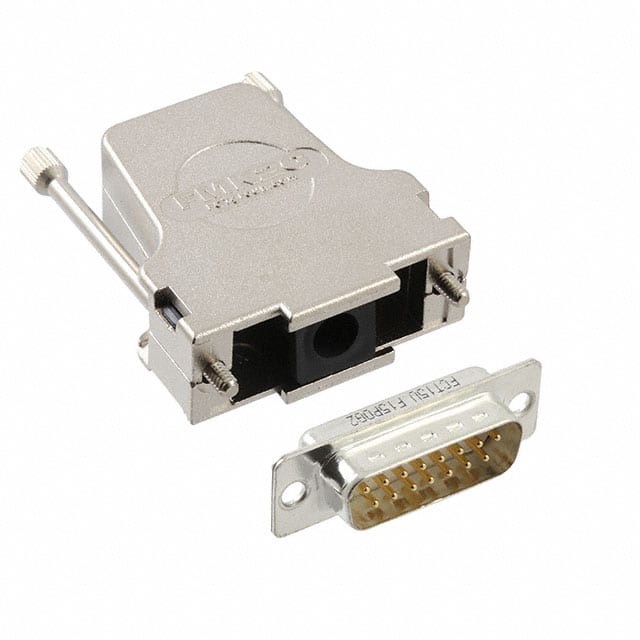

The Molex 1731140098 is a D-Sub connector assembly designed for reliable signal connections in a compact 15-position layout. This plug connector features male pins with gold contact finish for corrosion resistance and reliable conductivity. The connector uses solder cup termination, making it suitable for custom cable assembly where wires are soldered directly into the cups.
Rated at 5A per contact, this connector is appropriate for low to moderate current signal applications. The shell is constructed from steel with a tin-plated finish, providing durability and EMI shielding. The connector layout is shell size 2 (DA, A), which is the standard for 15-position D-Sub connectors.
Mounting type is free hanging (in-line), allowing flexible cable-to-cable or cable-to-panel connections. The flange feature is housing/shell unthreaded, and the connector includes a backshell, cable clamp, grounding indents, mounting hardware, and strain relief for secure cable management and mechanical stability.
D-Sub plug with male pins.
15 positions arranged in 2 rows.
Solder cup termination.
5A per contact.
Free hanging (in-line) mounting.
Gold finish.
Backshell, cable clamp, grounding indents, mounting hardware, and strain relief.
