| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
390 pcs
|
390 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Form | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Impedance | |
| Lead Style | |
| SVHC Present | |
| Storage Temperature | |
| Termination Finish | |
| Termination Finish Thickness | |
| Type | |
| Wire Gauge |

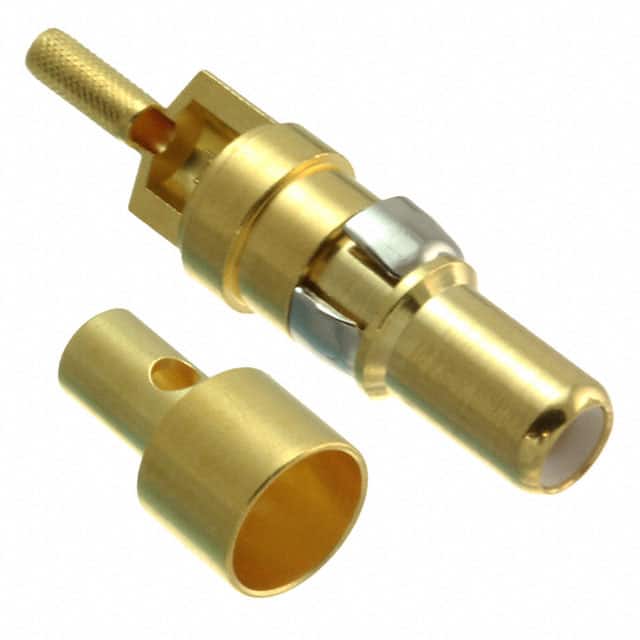

The Molex 1731120046 is a coaxial pin contact designed for use in D-Sub connector systems. It is engineered for 50 Ohm impedance and is compatible with RG-178 coaxial cable. The contact is machined from copper alloy and features gold plating on both the contact and termination surfaces, with inner plating thickness of 51.2µin (1.30µm) and outer plating thickness of 31.5µin (0.80µm) for the contact, and 8.00µin (0.203µm) for the outer termination finish.
Termination is achieved through a combination of crimp and solder methods, ensuring a reliable connection. The datasheet also indicates compatibility with RG196AU and RG404U cables. This contact is suitable for applications requiring a robust coaxial interconnect within a D-Sub shell.
The impedance is 50 Ohms.
It is compatible with RG-178, RG196AU, and RG404U coaxial cables.
The contact is made of machined copper alloy with gold plating. Inner contact finish thickness is 51.2µin (1.30µm) and outer is 31.5µin (0.80µm). Termination finish is also gold.
It uses a combination of crimp and solder termination.
The part is listed as RoHS3 Compliant, but this information is unverified.
