| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section (Stranded) | |
| Connection Standard | |
| Current | |
| EAN | |
| Flammability Class | |
| Hole Diameter | |
| Insulating Material | |
| Insulating Material Group | |
| Internal Cylindrical Gage | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Packing Method | |
| Pin Dimensions | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage (II/2) | |
| Rated Surge Voltage (III/2) | |
| Rated Surge Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Screw Thread | |
| Standard Package Quantity | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Weight | |
| Wire Gauge | |
| Wire Gauge (AWG) | |
| Wire Termination |

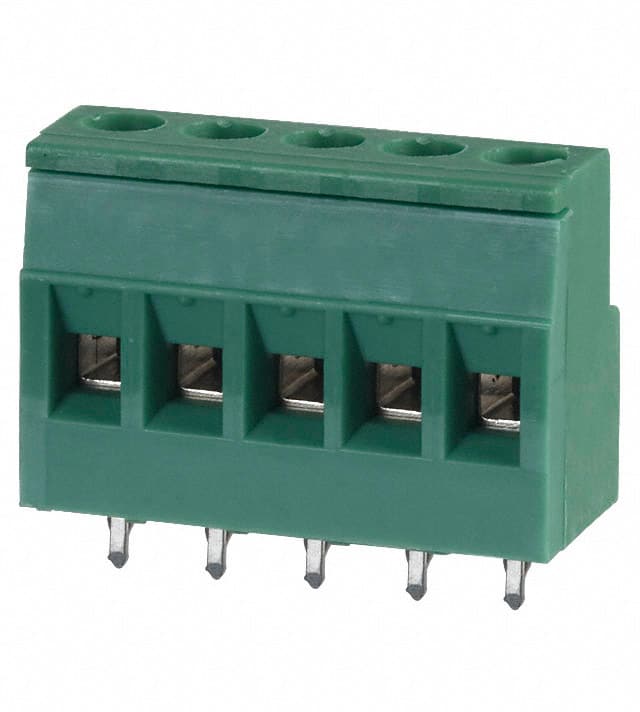

The Phoenix Contact 1730641 is a 5-position wire-to-board terminal block with a pitch of 5.08 mm. It uses a screw-rising cage clamp termination and is designed for through-hole mounting on a PCB. The terminal block accepts solid or stranded conductors from 0.14 mm² to 2.5 mm² (16-26 AWG) with a stripping length of 8 mm. The screw thread is M3 with a tightening torque range of 0.5 to 0.6 Nm. The pin diameter is 1.4 mm and the recommended PCB hole diameter is 1.45 mm.
The insulating material is polyamide (PA) with flammability class UL94 V0 and insulating material group I. The nominal current rating is 12 A and nominal voltage is 250 V, with a rated surge voltage of 2.5 kV (for all overvoltage categories III/3, III/2, II/2). The connection is in accordance with EN-VDE standard. The terminal block is RoHS compliant since 2003.
Each unit weighs 10.61 g and is supplied in bulk packaging of 50 pieces. The body color is green. This component is suitable for industrial control, automation, and general PCB wire connection applications.
This terminal block has 5 positions.
The pitch is 5.08 mm.
The nominal current is 12 A, with a maximum load current of 12 A.
The nominal voltage is 250 V. The rated voltage for overvoltage category III/2 is 320 V, and for II/2 is 630 V.
The mounting type is through hole.
It accepts solid or stranded conductors from 16 to 26 AWG (0.14 mm² to 2.5 mm²).
Yes, it is RoHS compliant since 2003.
