| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Hole Diameter | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

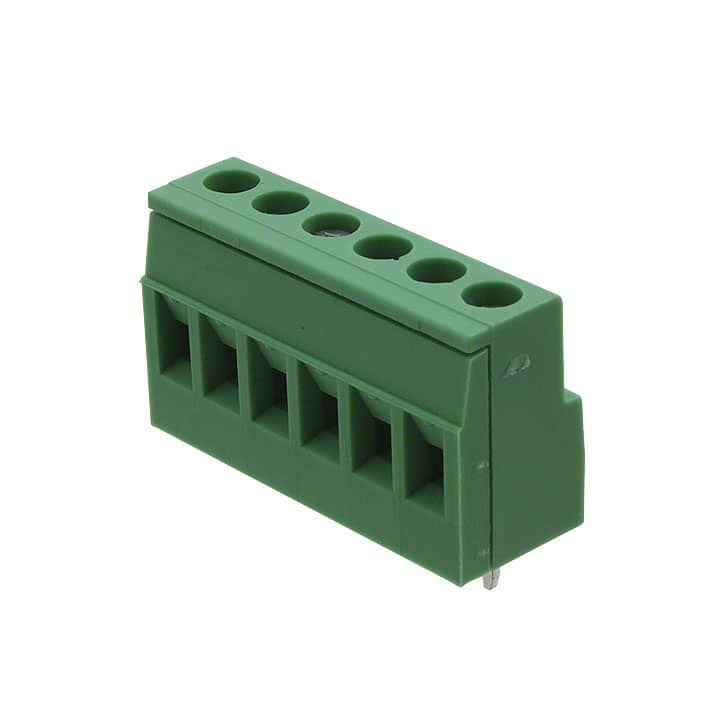

The Phoenix Contact 1730434 (MKDS 2,5/ 6-5,08) is a 6-position PCB terminal block with a 5.08mm pitch, designed for wire-to-board connections. It features a screw connection with rising cage clamp termination, accepting solid or stranded conductors from 0.14 to 2.5 mm² (12-30 AWG). The green insulating body is made of PA (polyamide) with a UL 94 V-0 flammability rating.
Electrically, the terminal block is rated for 24A nominal current and 400V rated voltage per IEC/EN-VDE standards, with a rated surge voltage of 4 kV. For UL applications, the ratings are 10A at 300V. The M3 screw terminals require a tightening torque of 0.5-0.6 Nm, and the recommended stripping length is 8 mm.
Mechanically, the component is through-hole mounted with a horizontal mating orientation. Pin dimensions are 1.1 x 0.8 mm with a 1.4 mm PCB hole diameter. The insulating material is PA (polyamide) with a UL 94 V-0 flammability rating, suitable for industrial environments.
The pitch is 5.08 mm.
It has 6 positions on a single level.
The IEC nominal current is 24 A, and the UL rating is 10 A.
The IEC rated voltage is 400 V (III/2) and the UL rating is 300 V.
It is a through-hole mount component with a horizontal mating orientation.
It accepts 12-30 AWG solid or stranded wire.
The insulating material is PA (polyamide) with a UL 94 V-0 flammability rating.
