1730421 Phoenix Contact 1730421 is a 5-position wire-to-board terminal block with 5.08mm pitch, rated for 10A and 300V. It features screw rising cage clamp termination and through-hole mounting.
Mfr Part #:

1730421

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1730421 is a 5-position wire-to-board terminal block with 5.08mm pitch, rated for 10A and 300V. It features screw rising cage clamp termination and through-hole mounting.
✓ Total Stock: 2,950 pcs

1730421 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2,950 pcs
On Request
2950 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1730421 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Storage Temperature
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1730421 Description

Short technical summary and product information.

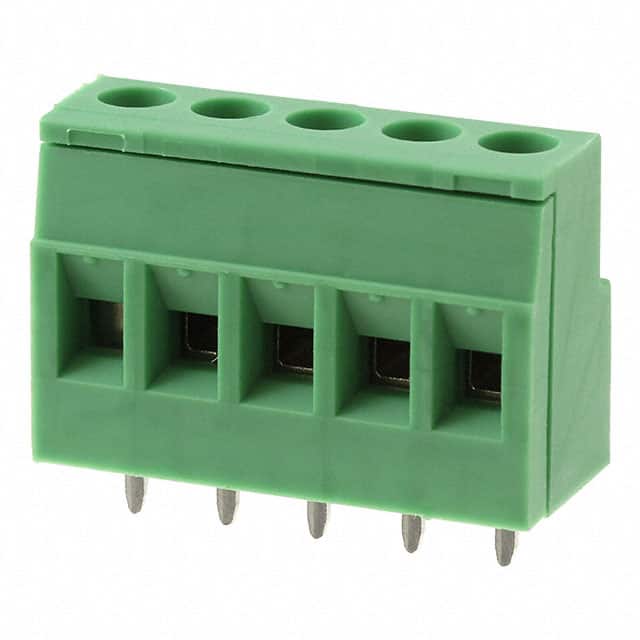

The Phoenix Contact 1730421 is a wire-to-board terminal block with 5 positions arranged in a single level. The pitch is 5.08mm, and the mounting orientation is horizontal with the board. The wire termination employs a screw rising cage clamp mechanism, accepting wire gauges from 12 to 30 AWG.



Electrically, the terminal block is rated for 10A current and 300V voltage. The housing is green in color, and it is designed for through-hole mounting.



This terminal block is suitable for power distribution and signal connections in industrial control systems, building automation, and similar applications where reliable wire termination is required.

1730421 Quick Information

Product Type: Wire to Board Terminal Block
Series: COMBICON MKDS
Canonical Name: Phoenix Contact 1730421 Wire to Board Terminal Block, 5 Position, 5.08mm, Through Hole
Subcategory: Wire to Board

1730421 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1730421 Features

  • 5 positions with 5.08mm pitch spacing.
  • Rated for 10A and 300V operation.
  • Screw rising cage clamp termination.
  • Accepts 12 to 30 AWG wires.
  • Through-hole mounting, green housing.

1730421 Applications

  • Ideal for industrial control panel wiring.
  • Used in building automation systems.
  • Suitable for power distribution boards.
  • Perfect for sensor and actuator connections.

1730421 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

5 positions in a single level.

What is the pitch?

5.08mm (0.200 inches).

What is the current rating?

10A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole.

What wire gauge is supported?

12-30 AWG.

What termination style does it use?

Screw - Rising Cage Clamp.
