| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Working Voltage |

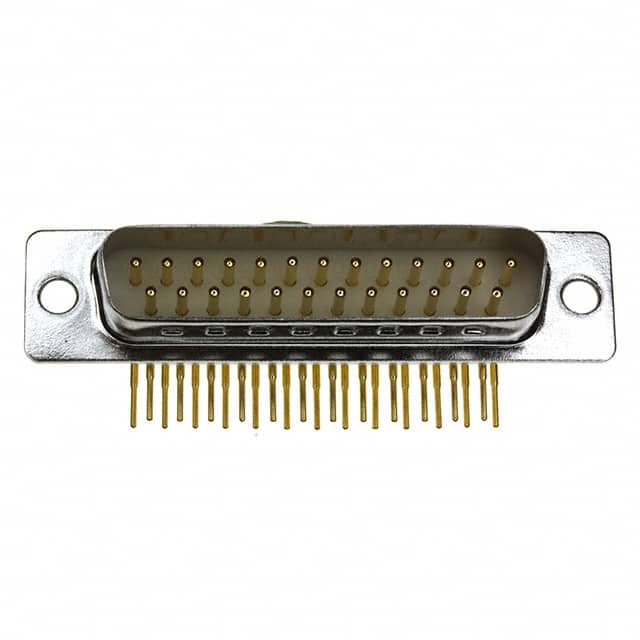

The 173-E25-113R001 is a D-Sub plug connector from NorComp Inc., part of the 173-E series. It features 25 male pins with gold flash on precision machined copper alloy contacts. The connector offers right angle through hole termination and supports panel mounting with a nickel plated steel shell.
Electrical specifications include a current rating of 5 Amps, working voltage of 250V, contact resistance of 10 milliohms maximum, insulation resistance of 5 gigohms minimum, and dielectric withstanding voltage of 1000 VAC for 1 minute. Operating temperature range is -55°C to +125°C. The insulator is glass-filled nylon thermoplastic with UL94 V-0 flammability rating and 260°C process temperature.
The shell features grounding indents for additional retention and grounding. Backset spacing is 0.283 inches (7.20 mm). The flange feature is housing/shell unthreaded.
Mounting type is panel mount with through hole right angle solder termination. No hardware options are included (00 hardware option based on part number suffix).
25 positions.
5 Amps.
Working voltage is 250V.
Panel mount with through hole right angle solder termination.
-55°C to +125°C.
Gold flash on precision machined copper alloy contacts.
