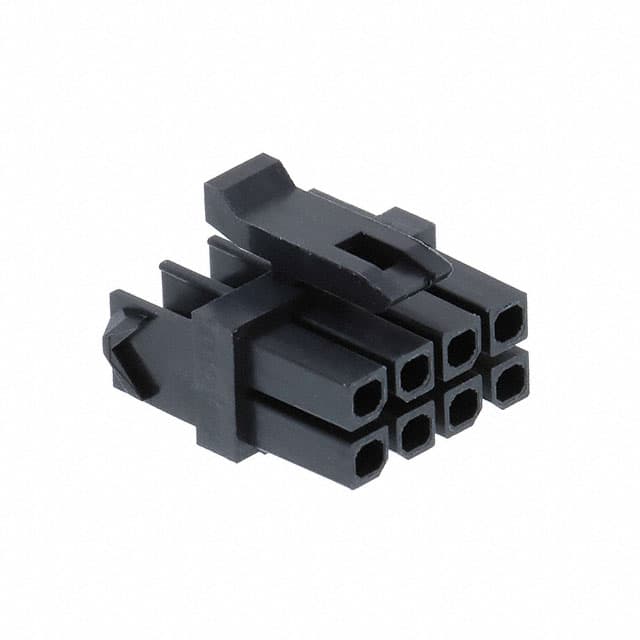

The Molex 1729520801 is an 8-position, 2-row rectangular connector receptacle housing belonging to the Micro-Fit TPA connector family. It has a 3.00mm pitch and 3.00mm row spacing, designed for use with female socket contacts.
Electrical specifications include a maximum voltage rating of 600V and a current rating that depends on the selected terminal, ranging from 5.0 to 10.0A maximum. Contact resistance is 10 mΩ maximum, and insulation resistance is 1,000 MΩ minimum. The operating temperature range is -40°C to 105°C.
The housing features free hanging (in-line) mounting and crimp termination. It includes a latch holder fastening type and is fully polarized to assure proper mating orientation. The Terminal Position Assurance (TPA) feature eliminates terminal back-outs resulting from improper assembly.
Compatible with all existing Micro-Fit 3.0 headers and plugs, the 1729520801 is suitable for wire-to-wire, wire-to-board, and board-to-board applications. Typical applications include consumer appliances, data/computing harnesses, telecommunications/networking equipment, and non-sealed automotive applications. It is RoHS3 compliant and halogen free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.67 | $0.67 |
| 10+ | $0.57 | $0.57 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.49 | $0.49 |
| 250+ | $0.43 | $0.43 |
| 1,200+ | $0.40 | $0.40 |
| 3,000+ | $0.39 | $0.39 |
| 5,400+ | $0.36 | $0.36 |
| 10,200+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1729520801 connector has 8 positions arranged in 2 rows.
The pitch is 3.00mm (0.118") with a row spacing of 3.00mm.
The current rating depends on the terminal used, with a range of 5.0 to 10.0 A maximum.
The maximum voltage rating is 600V.
The mounting type is free hanging (in-line).
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant.
