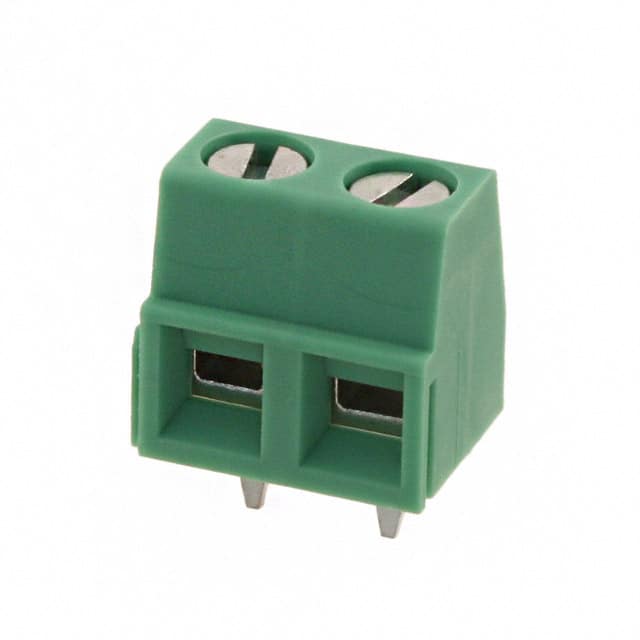

1729128 2-position wire-to-board terminal block with 5.08mm pitch, through hole mounting, and screw rising cage clamp termination. Rated 10A/300V, accepts 14-30 AWG wire.
Mfr Part #:

1729128

Available from 4 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
2-position wire-to-board terminal block with 5.08mm pitch, through hole mounting, and screw rising cage clamp termination. Rated 10A/300V, accepts 14-30 AWG wire.
✓ Total Stock: 181 pcs

1729128 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1729128 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1729128 Description

Short technical summary and product information.

The Phoenix Contact 1729128 is a 2-position wire-to-board terminal block with a 5.08mm pitch, designed for reliable PCB-mounted wire connections. It features a single level with side entry wire orientation, making it suitable for horizontal mating. The terminal block uses a screw rising cage clamp termination mechanism, providing secure clamping for wires from 14 to 30 AWG.



Electrically rated at 10A and 300V, this component is suitable for low to moderate power interconnect applications. The through hole mounting style ensures stable mechanical attachment to the PCB. The housing is green and includes side interlocking features, allowing multiple blocks to be joined for multi-position configurations without additional hardware.



This terminal block is commonly used in industrial control, automation, and power distribution systems where reliable wire-to-board connections are required. Its compact 5.08mm pitch helps conserve PCB space while maintaining adequate isolation between circuits.

1729128 Quick Information

Product Type: Wire-to-Board Terminal Block
Series: COMBICON MKDSN
Canonical Name: Phoenix Contact 1729128 2-Position Wire-to-Board Terminal Block, 5.08mm Pitch, Through Hole, Screw Cage Clamp
Subcategory: Wire-to-Board Terminal Block

1729128 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1729128 Features

  • 5.08mm pitch for compact PCB layout.
  • 2 positions with single level.
  • Screw rising cage clamp termination.
  • Rated for 10A and 300V.
  • Through hole mounting with side interlocking.

1729128 Applications

  • Accepts 14-30 AWG wire sizes.
  • Suitable for horizontal wire entry.
  • Common in PCB terminal block applications.
  • Used in industrial control panels.
  • Ideal for power distribution circuits.

1729128 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1729128 have?

2 positions per level, single level.

What is the pitch of this terminal block?

5.08mm (0.200 inches).

What is the current and voltage rating?

10A current rating and 300V voltage rating.

What mounting type does it use?

Through hole mounting.

What wire gauge does it accept?

14-30 AWG.

What is the wire termination method?

Screw - Rising Cage Clamp.

What is the mating orientation?

Horizontal with Board.
