1728879 4-position right-angle terminal block header from Phoenix Contact with 7.62mm pitch. Rated for 16A (VDE) and 630V (III/2) with UL ratings up to 18.5A/300V.
Mfr Part #:

1728879

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
4-position right-angle terminal block header from Phoenix Contact with 7.62mm pitch. Rated for 16A (VDE) and 630V (III/2) with UL ratings up to 18.5A/300V.
✓ Total Stock: 21 pcs

1728879 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1728879 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1728879 Description

Short technical summary and product information.

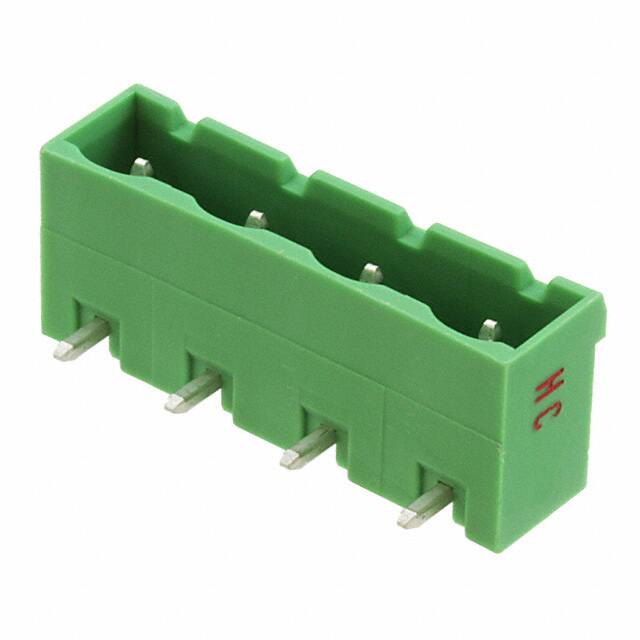

The Phoenix Contact 1728879 is a 4-position terminal block header from the GMSTBA 2,5 HC series. It features a right-angle orientation with a 7.62mm pitch and through-hole solder termination. The header is shrouded on four sides for protection.



Electrical ratings include a nominal current of 16A per VDE and maximum load current of 16A. UL ratings are 18.5A for Group B and 10A for Group D. Rated voltage is 630V (III/2) and 1000V (II/2) with a nominal voltage of 500V. UL voltage rating is 300V for Groups B and D. The insulating material is polyamide with V0 flammability class.



Mechanical specifications include pin dimensions of 1x1mm, hole diameter 1.4mm, length 12mm, and dimension a of 22.86mm. The contact mating finish is tin. The component is manufactured in Germany and has a customs tariff number of 85366990.

1728879 Quick Information

Product Type: Terminal Block Header
Series: GMSTBA 2,5 HC
Canonical Name: Header, Male Pins, Shrouded (4 Side), 4 Position, 7.62mm Pitch, Right Angle, Through Hole
Subcategory: Shrouded Header

1728879 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1728879 Features

  • 4 positions with 7.62mm pitch.
  • Right-angle through-hole mounting.
  • Rated for 16A nominal current.
  • Shrouded on four sides.
  • V0 flammability rated polyamide housing.

1728879 Applications

  • Used in industrial control panel wiring.
  • Suitable for power distribution blocks.
  • Ideal for PLC and I/O module connections.

1728879 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch of this terminal block header?

7.62 mm.

What is the current rating of the 1728879?

Nominal current is 16A (VDE). UL current ratings: 18.5A (Group B) and 10A (Group D).

What is the voltage rating?

Rated voltage is 630V (III/2) and 1000V (II/2). Nominal voltage is 500V. UL voltage rating is 300V for Groups B and D.

What is the mounting type?

Through hole with solder termination.

What color is the housing?

Green.

What is the insulation material and flammability class?

Polyamide (PA) with V0 flammability class per UL 94.
