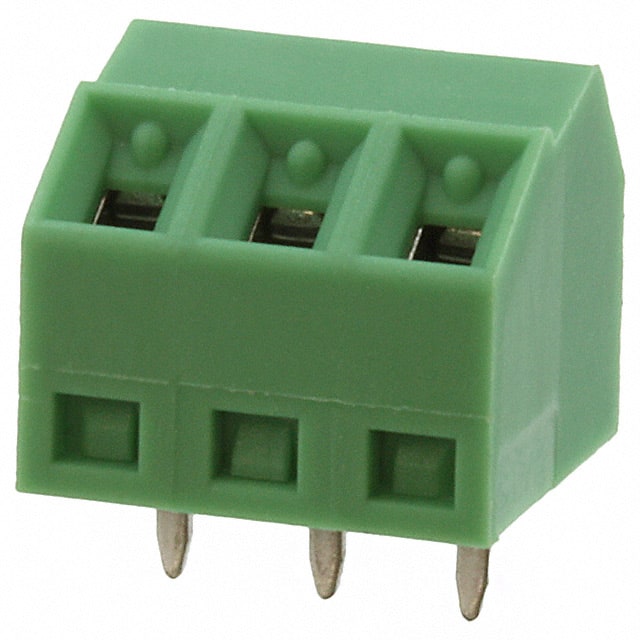

The Phoenix Contact 1728297 is a wire-to-board terminal block offering a 3-position single-level design with a 3.81mm pitch. This through-hole component is built for secure wire connections using a screw rising cage clamp termination method, ideal for industrial control and instrumentation applications.
The terminal block supports wire gauges from 16 to 30 AWG, handling a current rating of 10 A and a voltage rating of 300 V. Its green housing provides clear visual identification. The mating orientation is at a 55-degree angle to the board, which facilitates convenient wire routing in space-constrained enclosures.
This product is RoHS3 compliant and has an MSL of 1 (unlimited floor life). It is suitable for a wide range of PCB applications requiring reliable and easily serviceable wire connections. The termination style ensures a gas-tight connection for long-term performance.
It has 3 positions per level.
The pitch is 3.81mm.
The current rating is 10 A.
The voltage rating is 300 V.
It uses through-hole mounting.
It supports 16 to 30 AWG wire.
The termination style is screw rising cage clamp.
