| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| ConnectorType | |
| Contact Finish | |
| ContactFinish | |
| Current Rating (Amps) | |
| CurrentRating | |
| DKDKPartNumber | |
| Fastening Type | |
| FasteningType | |
| Ingress Protection | |
| IngressProtection | |
| Lead Style | |
| Material Flammability Rating | |
| MaterialFlammabilityRating | |
| Mounting Feature | |
| Mounting Type | |
| MountingFeature | |
| MountingType | |
| Number of Positions | |
| NumberOfPositions | |
| Operating Temperature | |
| OperatingTemperature | |
| Orientation | |
| Primary Material | |
| PrimaryMaterial | |
| Shell Material | |
| ShellMaterial | |
| Shielding | |
| Storage Temperature | |
| Termination | |
| Voltage Rating | |
| VoltageRating |

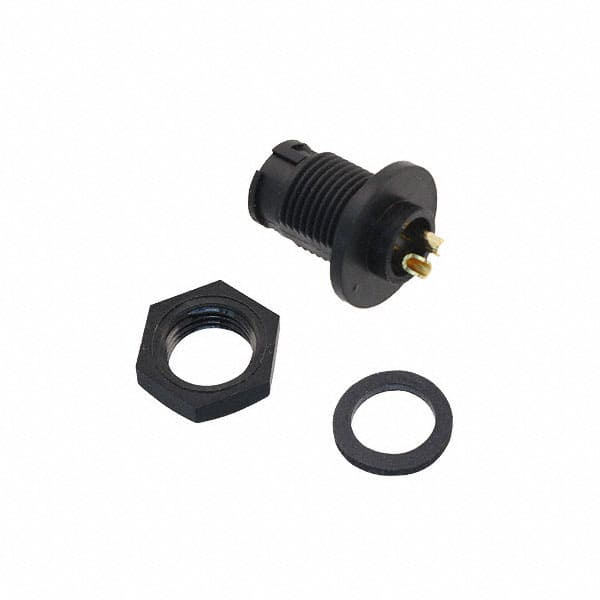

The Conxall/Switchcraft 17282-2PG-300 is a Mini-Con-X series sealed circular connector designed for reliable performance in harsh environments. This panel mount receptacle features 2 male pins with gold plated contacts for corrosion resistance and reliable signal transmission. The connector is rated for 600VAC/DC and 7.5A, making it suitable for both power and signal applications.
Mechanical design includes a thermoplastic shell with bayonet lock fastening and keyed orientation to prevent mismating. The bulkhead front side nut mounting style provides secure panel installation. Solder cup termination allows for straightforward field wiring.
The connector carries an IP67 ingress protection rating for dust tight and waterproof operation. Operating temperature range spans -40°C to 85°C. The shell material is rated UL94 HB for flammability. This unshielded connector is available in black.
600VAC/DC
7.5A
2 positions
Panel mount with bulkhead front side nut
IP67 dust tight and waterproof
Solder cup
-40°C to 85°C
