| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Country of Origin | |
| Current | |
| Current Rating | |
| Hole Diameter | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

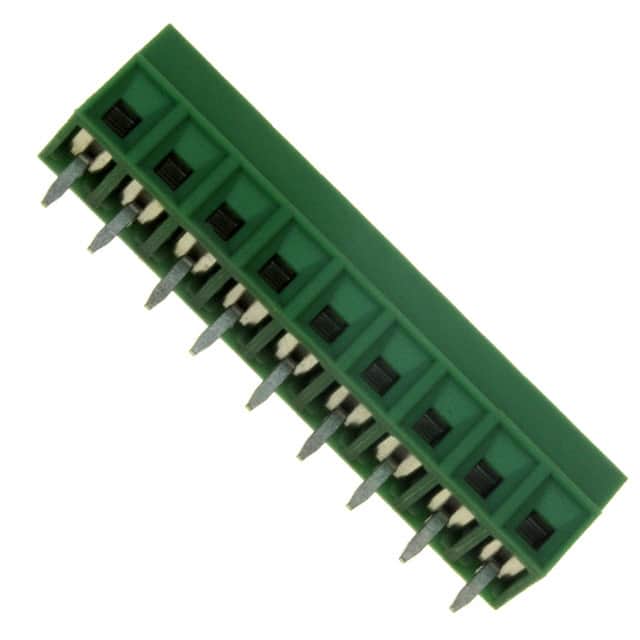

The Phoenix Contact 1727081 MKDS 1/ 9-3,81 is a 9-position PCB terminal block with a 3.81mm pitch, designed for wire-to-board connections. It features a screw connection with rising cage clamp termination, accepting 16-30 AWG wire. The component is rated for 13.5A nominal current and 200V rated voltage (overvoltage category III/2), with a rated surge voltage of 2.5 kV.
This terminal block uses a through hole mounting method compatible with wave soldering. The insulating material is polyamide (PA) with a flammability rating of UL 94 V-0. The M2 screw thread requires a tightening torque of 0.22 to 0.25 Nm, and the stripping length is 5 mm. Solder pin dimensions are 0.5 x 0.9 mm with a length of 3.5 mm, fitting a 1.1 mm PCB hole diameter.
Designed for horizontal mating orientation with the board, this component is suitable for industrial control, power distribution, and general signal interconnection applications. The green housing provides clear visual identification. Packaged in units of 100 pieces, each weighing 4.29 g, with country of origin Germany.
It has 9 positions.
The pitch is 3.81 mm.
The nominal current rating is 13.5 A.
The rated voltage is 200 V for overvoltage category III/2, 160 V for III/3, and 400 V for II/2.
It uses through hole mounting with wave soldering.
