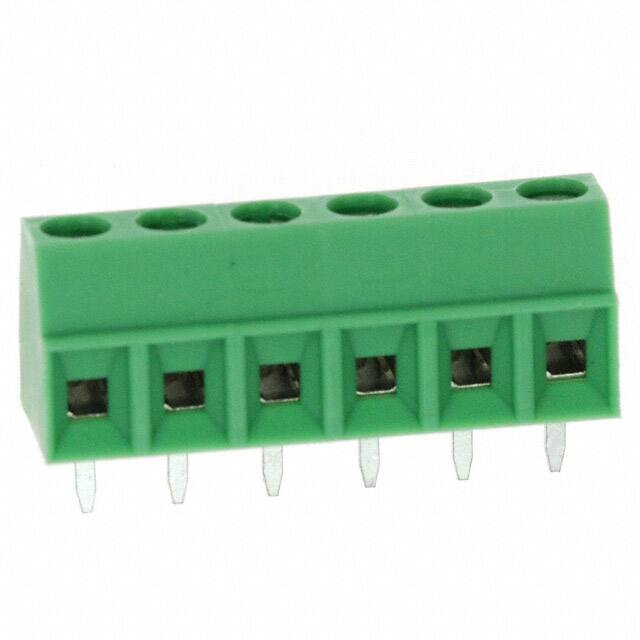

1727052 Phoenix Contact 1727052 Wire to Board terminal block with 6 positions, 3.81mm pitch, rated for 13.5A and 300V. Features through hole mounting and screw rising cage clamp termination.
Mfr Part #:

1727052

Available from 3 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1727052 Wire to Board terminal block with 6 positions, 3.81mm pitch, rated for 13.5A and 300V. Features through hole mounting and screw rising cage clamp termination.
✓ Total Stock: 69 pcs

1727052 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1727052 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Current
Industrial Grade
Lead Spacing
Lead Style
Mating Orientation
Medical Grade
Military Grade
Mounting Type
Number of Levels
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1727052 Description

Short technical summary and product information.

The Phoenix Contact 1727052 is a wire-to-board terminal block designed for reliable PCB connections. It offers 6 positions on a single level with a 3.81mm pitch, accommodating wire gauges from 16 to 30 AWG. Electrical ratings are 13.5A at 300V, making it suitable for moderate power applications.



The component uses a through hole mounting style with a screw rising cage clamp termination. This ensures secure wire retention and ease of installation in industrial control panels, automation systems, and similar equipment. The green housing provides visual identification in dense PCB layouts.



Mating orientation is horizontal with the board, optimizing space in compact designs. The single-level layout simplifies routing, while the 3.81mm pitch balances density and clearance for common wire sizes.

1727052 Quick Information

Product Type: Wire to Board Terminal Block
Series: MKDS
Canonical Name: Phoenix Contact 1727052 Wire to Board Terminal Block, 6 Positions, 3.81mm Pitch, Through Hole, Screw Rising Cage Clamp
Subcategory: Wire to Board

1727052 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 30
REACH Status: REACH Unaffected
Lead Free: Yes

1727052 Features

  • 6 positions on 3.81mm pitch.
  • Rated for 13.5A and 300V.
  • Accepts 16 to 30 AWG wire.
  • Through hole mounting type.
  • Screw rising cage clamp termination.

1727052 Applications

  • Used in industrial control system wire-to-board connections.
  • Common in automation equipment for secure wire termination.
  • Suitable for PCB mounting in power distribution circuits.

1727052 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

6 positions per level on a single level.

What is the pitch?

3.81mm.

What is the current rating?

13.5 A.

What is the voltage rating?

300 V.

What mounting type does it use?

Through hole.

What wire gauge range is supported?

16-30 AWG.

What is the termination style?

Screw - rising cage clamp.
