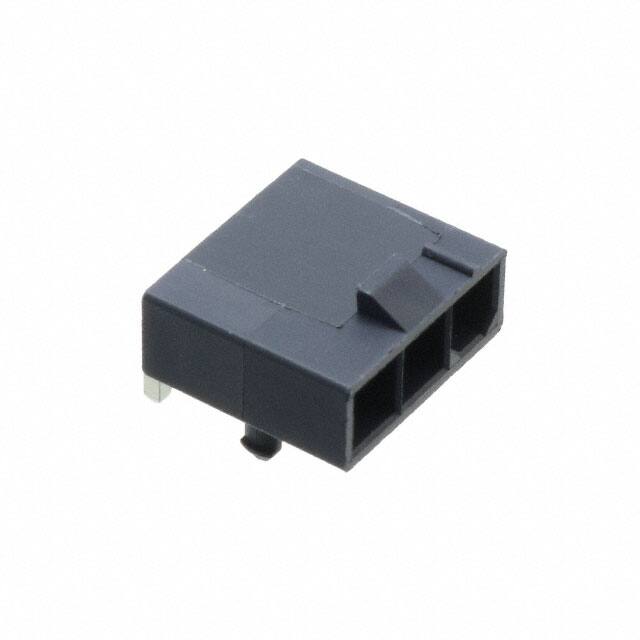

The Molex 1726480103 is a 3-position, single-row male pin header with a 4.20mm pitch, designed for board-to-cable/wire applications. It features a right-angle, through-hole mounting style with solder termination. The header is shrouded on all four walls, providing robust pin protection and alignment during mating. A locking ramp fastening type ensures a secure connection in vibration-prone environments.
The header is constructed with a black polyamide (nylon) insulator rated UL94 V-2 for flammability. Contacts are made of brass alloy with a tin plating of 100µin (2.54µm), offering good conductivity and corrosion resistance. The contact shape is square, with a contact length of 3.50mm. The operating temperature range spans -40°C to 105°C, making it suitable for a wide variety of industrial and consumer environments.
Electrical ratings include a voltage rating of 600V, while the current rating varies based on the wire gauge used. The part includes a board lock feature for secure PCB retention and is glow wire compliant for applications requiring high-temperature resistance. The header is designed for use with compatible 4.20mm pitch female housings.
3 positions.
4.20mm (0.165 inches).
600V.
Varies by wire gauge; consult specific application requirements.
Through hole, right angle.
Tin, 100µin (2.54µm) thickness.
-40°C to 105°C.
