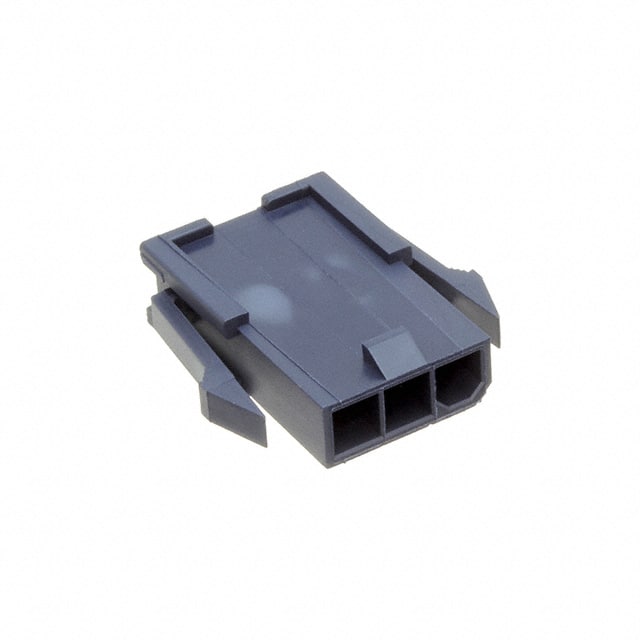

1726460312 Molex 1726460312 is a 3-position rectangular connector plug housing with 4.20mm pitch, panel mount snap-in, and crimp termination.
Mfr Part #:

1726460312

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 1726460312 is a 3-position rectangular connector plug housing with 4.20mm pitch, panel mount snap-in, and crimp termination.
✓ Total Stock: 8,517 pcs

1726460312 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
8,517 pcs
On Request
8517 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1726460312 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
View Similar Products (0)

1726460312 Description

Short technical summary and product information.

This 3-position rectangular connector plug housing from Molex is designed for 4.20mm pitch applications. It features a male pin contact type, single row configuration, and a locking ramp fastening system for secure mating. The housing is mounted via panel mount snap-in, making installation quick and tool-free. Contact termination is crimp, allowing for reliable wire connections.



The housing is black and operates over a temperature range of -40°C to 105°C, suitable for a variety of environments. It is part of Molex's standard connector family and is used in wire-to-wire or wire-to-board applications across automotive, industrial, and consumer electronics sectors.



No additional specifications such as current rating or voltage rating are available in the current data. The part is listed as RoHS3 compliant, though this status is unverified. For full design details, refer to the manufacturer's documentation.

1726460312 Quick Information

Product Type: Rectangular Connector Housing
Series: 172646
Canonical Name: Molex 1726460312 Rectangular Connector Housing, Plug, 3 Position, 4.20mm Pitch, Panel Mount, Snap-In
Subcategory: Plug Housing

1726460312 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1726460312 Features

  • 3-position single row plug housing.
  • 4.20mm pitch for compact designs.
  • Panel mount snap-in installation.
  • Locking ramp for secure mating.
  • Operating temperature from -40°C to 105°C.

1726460312 Applications

  • Ideal for wire-to-wire connections in automotive systems.
  • Used in power supply and lighting applications.
  • Suitable for industrial control panels.
  • Common in consumer electronics wiring harnesses.

1726460312 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

3 positions.

What is the pitch?

4.20mm (0.165 inches).

What is the mounting type?

Panel Mount, Snap-In.

What is the operating temperature range?

-40°C to 105°C.

What is the color of the housing?

Black.

What type of fastening does it use?

Locking Ramp.

What contact termination type does it require?

Crimp.
