| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Termination | |
| Termination Style |

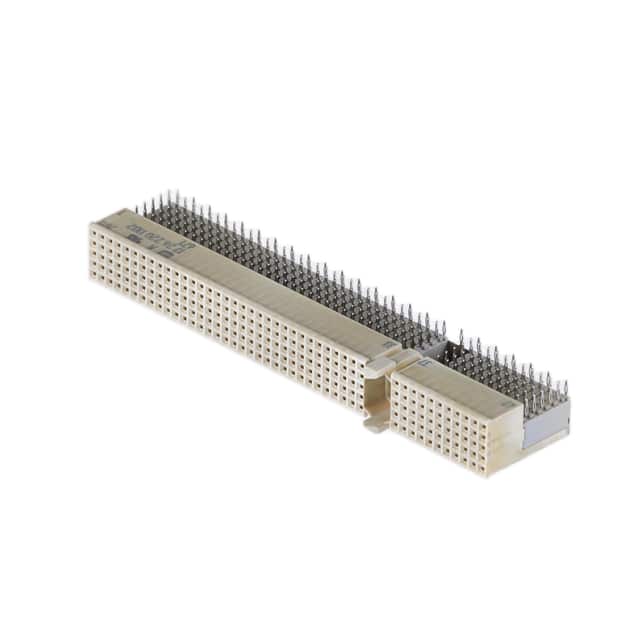

The Harting 17262201102 is a hard metric, standard backplane connector designed for high-density applications. It is a receptacle with female sockets, featuring 220 positions arranged in 5 rows with a 2.00mm pitch.
This connector uses a press-fit termination style for a reliable, solderless connection to the PCB. It is designed for through-hole, right-angle mounting, making it suitable for mezzanine or backplane architectures where space is constrained.
The contacts are finished with gold, ensuring reliable signal integrity over multiple mating cycles. The connector style is MONOBLOCK, indicating a single-piece construction for ease of handling and assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.32 | $29.32 |
| 10+ | $24.92 | $24.92 |
| 25+ | $23.36 | $23.36 |
| 50+ | $22.25 | $22.25 |
| 100+ | $21.19 | $21.19 |
| 250+ | $19.86 | $19.86 |
| 500+ | $18.91 | $18.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets.
It has 220 positions, all loaded.
The pitch is 2.00mm.
It is through-hole, right angle mounting.
It uses press-fit termination.
The contact finish is gold.
It has 5 rows.
