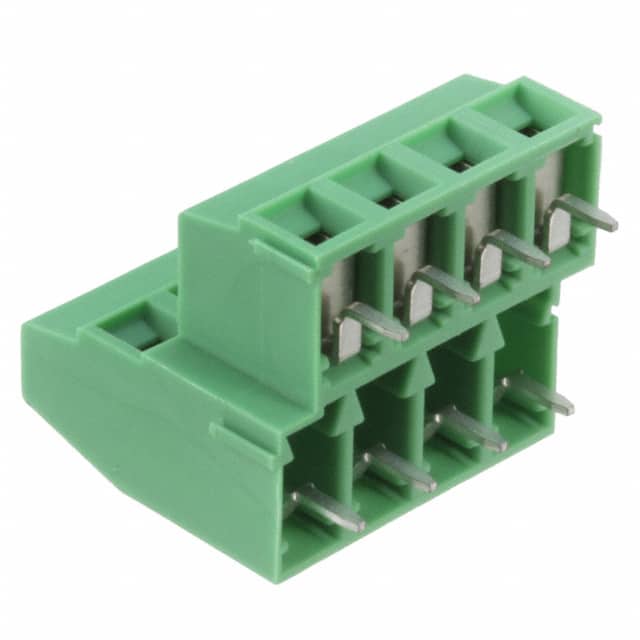

1726163 4 position 2 level wire to board terminal block from Phoenix Contact with 5.08mm pitch, 10A current rating, and 300V voltage rating. Features screw rising cage clamp termination and side interlocking.
Mfr Part #:

1726163

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
4 position 2 level wire to board terminal block from Phoenix Contact with 5.08mm pitch, 10A current rating, and 300V voltage rating. Features screw rising cage clamp termination and side interlocking.
✓ Total Stock: 11 pcs

1726163 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1726163 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1726163 Description

Short technical summary and product information.

The Phoenix Contact 1726163 is a 4 position per level, 2 level wire to board terminal block with a 5.08mm pitch. It is designed for through hole mounting and uses a screw rising cage clamp termination style for secure wire connections. The mating orientation is horizontal with the board, making it suitable for space-constrained PCB layouts.



Rated for 10A current and 300V voltage, this terminal block accepts wire gauges from 14 to 30 AWG. The green housing includes a side interlocking feature that allows multiple blocks to be joined for expanded connectivity. These specifications make it a reliable choice for industrial control and power distribution applications where robust connections are required.

1726163 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: 4 Position 2 Level Wire to Board Terminal Block, 5.08mm Pitch, Through Hole, Screw Rising Cage Clamp
Subcategory: Wire to Board

1726163 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

1726163 Features

  • 4 positions per level, 2 levels total.
  • 5.08mm pitch for space-efficient wiring.
  • Rated for 10A current and 300V voltage.
  • Through hole mounting for secure PCB attachment.
  • Screw rising cage clamp termination.

1726163 Applications

  • Ideal for industrial control systems.
  • Used in power distribution boards.
  • Suitable for automation equipment.
  • Common in building automation wiring.

1726163 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

4 positions per level with 2 levels, providing a total of 8 positions.

What is the pitch (pin spacing)?

5.08mm (0.200 inches).

What is the current rating?

10A.

What is the voltage rating?

300V.

What mounting type does it use?

Through hole mounting.

What wire gauge range is compatible?

14 to 30 AWG.

What termination style is used?

Screw - Rising Cage Clamp.
