1725698 Phoenix Contact 1725698 is a 6-position wire to board terminal block with 2.54mm pitch, rated for 6A and 125V.
Mfr Part #:

1725698

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1725698 is a 6-position wire to board terminal block with 2.54mm pitch, rated for 6A and 125V.
✓ Total Stock: 16 pcs

1725698 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 5 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1725698 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1725698 Description

Short technical summary and product information.

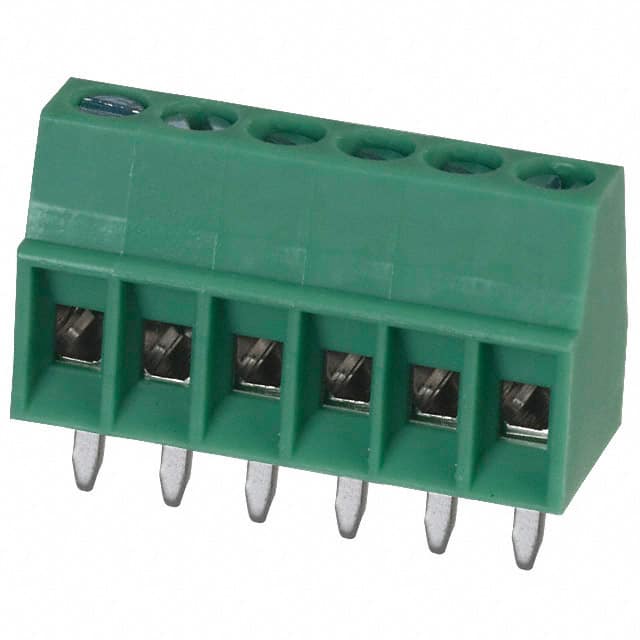

The Phoenix Contact 1725698 is a wire to board terminal block designed for reliable conductor-to-PCB connections. It features 6 positions with a single level and a pitch of 2.54mm (0.100 inches). Ideal for control and signal wiring, the terminal block accepts wire gauges from 20 AWG to 30 AWG. It is rated for a current of 6 amperes and a voltage of 125 volts.



The termination uses a screw mechanism for secure wire clamping. The component is designed for horizontal mating orientation with the board and is mounted using through hole technology. The housing is colored green, which is standard for this type of terminal block.



This part is suitable for use in industrial automation, building controls, and instrumentation equipment where compact and reliable wiring is required.

1725698 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1725698 6 Position Wire to Board Terminal Block
Subcategory: Wire to Board

1725698 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1725698 Features

  • 6 positions on a single level.
  • 2.54mm pitch for compact designs.
  • Rated for 6A and 125V.
  • Screw termination for secure connections.
  • Accepts 20-30 AWG wire.

1725698 Applications

  • Industrial control panel wiring.
  • Building automation and HVAC systems.
  • Signal and power distribution on PCBs.
  • Test and measurement equipment.

1725698 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1725698 terminal block have?

The terminal block has 6 positions on 1 level.

What is the pitch of the 1725698 terminal block?

The pitch is 2.54mm (0.100 inches).

What is the current and voltage rating of this terminal block?

It is rated for 6 A and 125 V.

What wire gauge range is supported by the 1725698?

It supports wire gauges from 20 AWG to 30 AWG.

What is the mounting type for the 1725698 terminal block?

The terminal block is through hole mounted.

What is the termination style of this terminal block?

The termination style is screw.
