| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | 1922 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

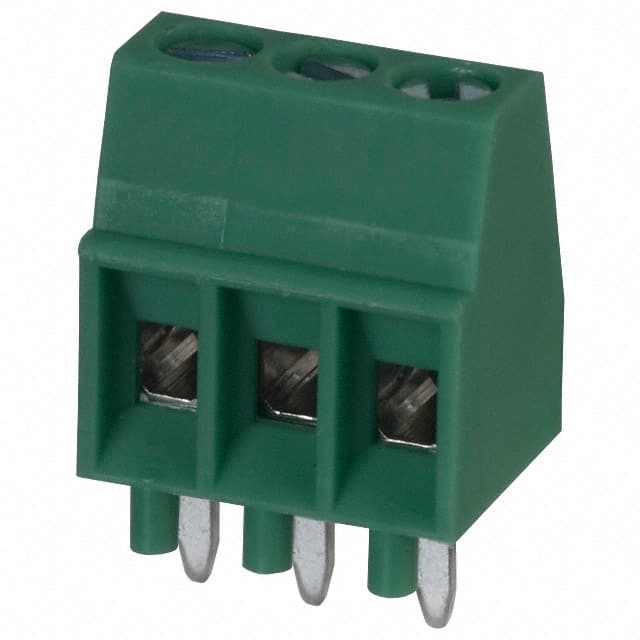

The Phoenix Contact 1725669 is a 3 position wire to board terminal block designed for reliable and secure wire connections. It features a 2.54mm (0.100") pitch and a single level configuration, making it suitable for compact PCB layouts. The terminal block accepts wire gauges from 20 to 30 AWG and is rated for 6A current and 125V voltage.
The component uses a screw wire termination method and has a horizontal with board mating orientation. It is housed in a green insulator and is designed for through hole mounting, providing a stable mechanical connection to the PCB. This terminal block is commonly used in industrial control, automation, and power distribution applications where space is limited.
It has 3 positions per level.
The pitch is 2.54mm (0.100 inches).
The current rating is 6 A.
The voltage rating is 125 V.
It uses through hole mounting.
It accepts 20 to 30 AWG wire.
The color is green.
