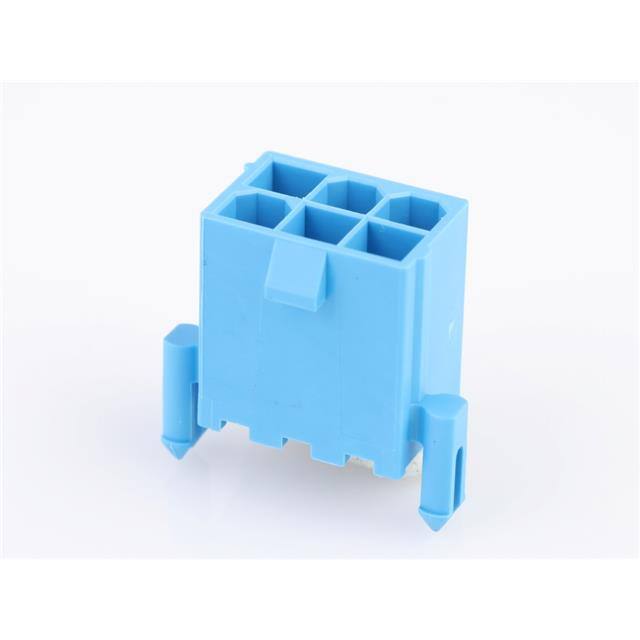

The Molex 1724470602 is a Mini-Fit Jr. series 2-position male pin header designed for wire-to-board applications. It has a shrouded 4-wall design with a locking ramp and board lock for secure mating and retention. The header uses a 2-row configuration with a 4.20mm pitch and 0.165 in (4.20mm) row spacing.
Rated for 600VAC/DC, the current rating varies by wire gauge. The operating temperature range spans -40°C to 105°C. Contacts are made of brass with 100.0µin tin plating. The insulation is polyamide (PA66/Nylon 6/6) in blue color, with a UL94 V-0 flammability rating.
This through-hole header features solder termination and is suitable for board-to-cable/wire connections. The insulating height is 12.70mm, and the contact length is 3.56mm. It is glow wire compliant and includes a board lock for additional PCB retention.
Packaging is through-hole, and the moisture sensitivity level is 1 (unlimited).
It has 2 positions in a 2-row configuration.
The pitch is 4.20mm with 0.165 in row spacing.
The current rating varies by wire gauge and is not specified as a fixed value.
Rated for 600VAC/DC.
Through-hole mounting with solder termination.
-40°C to 105°C.
Tin plating with 100.0µin thickness over brass.
