| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,372 pcs
|
1372 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Termination | |
| Termination Style |

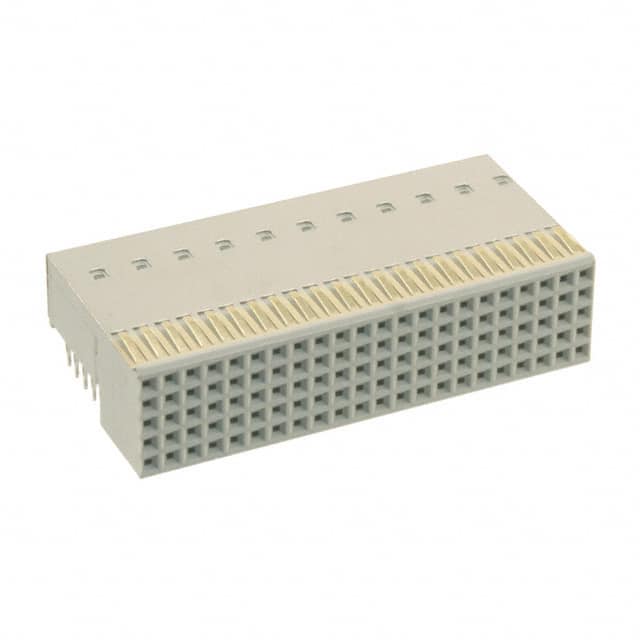

The Harting 17241102102 is a high-density backplane connector designed for CompactPCI J2/J5 applications. It is a receptacle with female sockets, offering 132 positions arranged as 110 signal contacts plus 22 ground contacts in a 5+1 row configuration. The contacts are spaced at a 2.00mm pitch, enabling compact board designs.
This connector utilizes a through hole right angle mounting style with press-fit termination, providing a reliable solderless connection that reduces assembly time and improves mechanical integrity. The gold contact finish ensures excellent corrosion resistance and signal integrity over multiple mating cycles.
The connector is fully loaded with all positions occupied, making it suitable for demanding backplane interconnect requirements. Its design aligns with the CompactPCI standard, commonly used in industrial computing, telecommunications, and embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.67 | $12.67 |
| 11+ | $11.49 | $11.49 |
| 22+ | $11.06 | $11.06 |
| 55+ | $10.78 | $10.78 |
| 110+ | $10.41 | $10.41 |
| 253+ | $9.92 | $9.92 |
| 506+ | $9.45 | $9.45 |
| 1,001+ | $9.01 | $9.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
132 positions (110+22 ground).
2.00mm (0.079 inches).
Through hole, right angle.
Press-fit.
Gold.
CompactPCI J2/J5.
5+1 rows.
