Mfr Part #:

1723163310

Name: 1723163310
Brand: Molex
SKU: 1723163310

Mfr Name: Molex

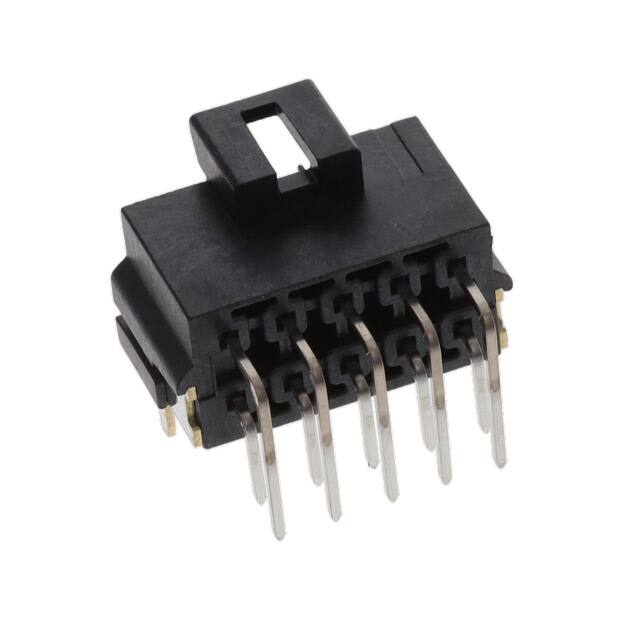

ULTRAFIT HDR RT 2R BLK 10 POS

Stock on Request

1723163310 Description

Short technical summary and product information.

ULTRAFIT HDR RT 2R BLK 10 POS

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

1723164310

Molex

ULTRAFIT HDR RT 2R NAT 10POS 30A

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Length	0.126" (3.20mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	0.534" (13.56mm)
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.138" (3.50mm)
Row Spacing	0.181" (4.60mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600VAC/DC
