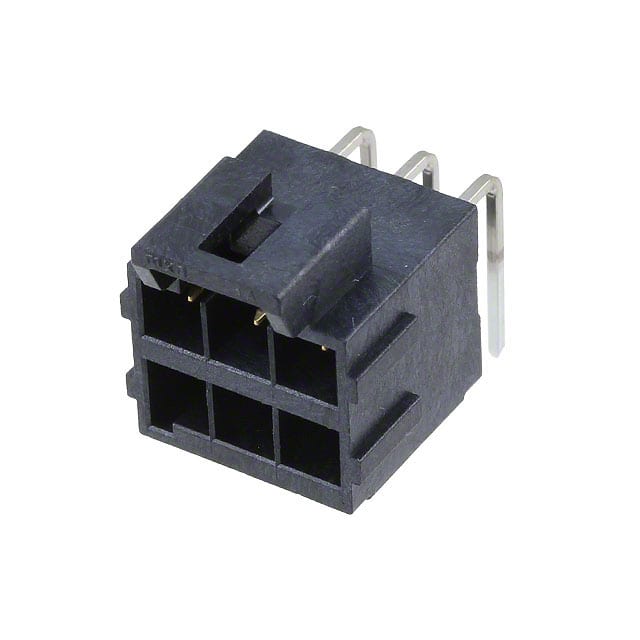

The Molex 1723161206 is a dual-row right-angle shrouded header from the Ultra-Fit family, designed for wire-to-board applications. It features 6 positions arranged in 2 rows with a 3.50mm pitch and through-hole, right-angle mounting. The header uses male square pins with a tin contact finish and is rated for 14.0A at 600VAC/DC.
Key electrical characteristics include a contact resistance of 7 milliohms, insulation resistance of 1000 megohms, and a dielectric withstanding voltage of 1800 VAC. The header is constructed with a liquid crystal polymer (LCP) insulator rated UL94 V-0 for flammability, and operates over a temperature range of -40 to +105°C.
Mechanical features include a full 4-wall shrouding for pin protection, a latch holder fastening system for secure mating, and a board guide for alignment. The contact mating force is rated at 4.5N maximum, and the connector is rated for 25 mating cycles. The contact length is 3.20mm.
The header is halogen-free and glow wire capable. Packaging options include bag, tray, and reel. This connector mates with Molex series 172258, 172298, 172256, and 172286 receptacles.
The pitch is 3.50mm (0.138 inches).
The current rating is 14.0A.
The voltage rating is 600VAC/DC.
It has 6 positions arranged in 2 rows.
It is a through-hole, right-angle mounting header.
The operating temperature range is -40 to +105°C.
Yes, it is RoHS3 compliant per the datasheet.
