| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,538 pcs
|
42538 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

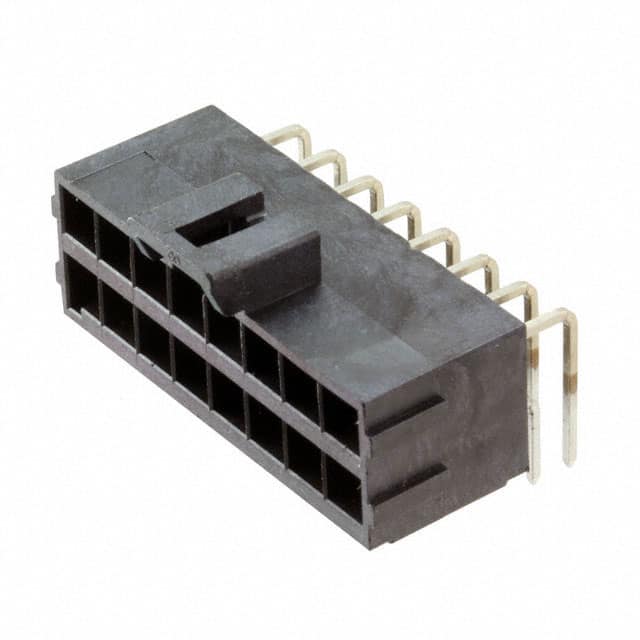

The Molex 1723161116 is a 16-position, dual-row, right-angle through-hole header from the Ultra-Fit power connector series. It features a 3.50mm pitch and a 4.60mm row spacing, providing a compact solution for board-to-cable/wire applications. The header is shrouded on all four walls, offering fully isolated terminals for protection during handling and mating.
This header is rated for a maximum current of 14.0A and a maximum voltage of 600V AC/DC. It has a contact resistance of 7 milliohms maximum and an insulation resistance of 1000 megohms minimum. The dielectric withstanding voltage is 1800 VAC. The operating temperature range is -40°C to 105°C.
The contacts are made of high copper alloy with a tin finish over nickel, and the housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The header is glow wire capable and halogen free. It is designed for solder termination and is available in bag, tray, or reel packaging.
The positive-lock housing with anti-snag design ensures a secure connection and provides an audible click during mating. The board guide feature aids in alignment during assembly. This header is suitable for use in consumer appliances, lighting, telecommunications, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1,200+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Molex 1723161116 header has 16 positions, all loaded, arranged in 2 rows.
The pitch is 3.50mm (0.138 inches).
The maximum current rating is 14.0A.
The maximum voltage rating is 600V AC/DC.
The mounting type is through hole, right angle.
The operating temperature range is -40°C to 105°C.
Yes, the header is RoHS3 compliant and halogen free.
