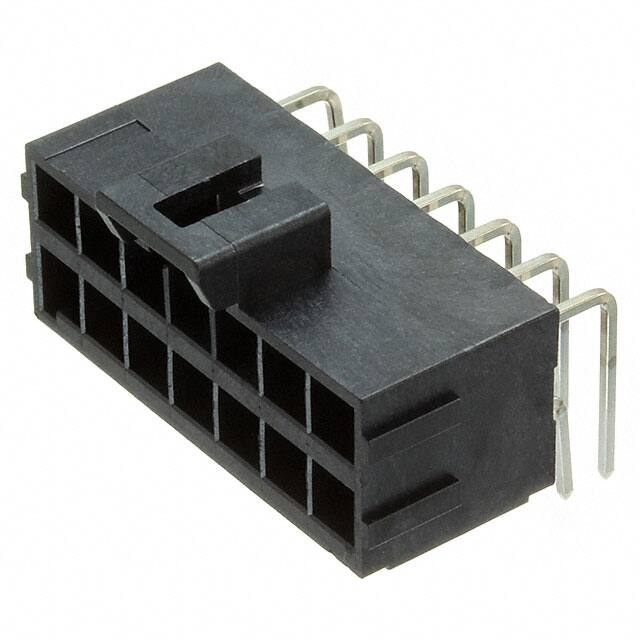

1723161114 This Molex 1723161114 is a 14-position, 3.50mm pitch right angle header connector with shrouded walls and latch holder fastening. Designed for board-to-cable/wire applications.
Mfr Part #:

1723161114

Available from 1 distributors
Mfr Name: Molex
Molex
This Molex 1723161114 is a 14-position, 3.50mm pitch right angle header connector with shrouded walls and latch holder fastening. Designed for board-to-cable/wire applications.
✓ Total Stock: 32,302 pcs

1723161114 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
32,302 pcs
On Request
32302 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1723161114 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Dielectric Withstanding Voltage
Durability
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

1723161114 Description

Short technical summary and product information.

The Molex 1723161114 is a 14-position, 2-row, 3.50mm pitch right-angle header from the Ultra-Fit series. It features a shrouded 4-wall design with latch holder fastening for secure mating and anti-snag protection.



Electrical specifications include a current rating of 14.0A per contact, voltage rating of 600V AC/DC, and a dielectric withstanding voltage of 1800VAC. The contacts are made of copper alloy with tin plating and have a maximum contact resistance of 7 milliohms.



Mechanical features include a through-hole right-angle mounting style, solder termination, and an insulation height of 13.56mm. The insulator is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.



This header is designed for wire-to-board applications and includes a board guide feature. It is part of the Molex Ultra-Fit family, offering high current density in a compact 3.50mm pitch footprint.

1723161114 Quick Information

Product Type: Header, Male Pins
Series: 172316
Canonical Name: Molex 1723161114 14 Position 3.50mm Pitch Right Angle Header
Subcategory: Male Pin Headers

1723161114 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1723161114 Features

  • Shrouded 4-wall header design.
  • Rated for 14.0A per contact and 600V.
  • Right angle through-hole mounting.
  • Tin-plated copper alloy contacts.
  • Latch holder fastening for secure mating.

1723161114 Applications

  • Used in home appliance control boards.
  • Ideal for server power distribution.
  • Suitable for industrial automation equipment.
  • Common in lighting ballast modules.

1723161114 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 1723161114 have?

14 positions.

What is the pitch of this header?

3.50mm per row.

What is the current rating of the 1723161114?

14.0A per contact (maximum).

What voltage is the connector rated for?

600V AC/DC.

What is the mounting style of this header?

Through hole, right angle.

What is the operating temperature range?

-40°C to 105°C.

What material are the contacts made of?
